Processor - Compaq AP200 Maintenance And Service Manual

3-26 Removal and Replacement Procedures

Processor

To remove the processor:
1. Perform the service preparations shown on page 3-2.
2. Remove the access panel.
NOTE: It may be necessary to remove the AGP graphics controller before removing the
processor.
3. Press in on the retaining clips on each side of the processor
out of the socket

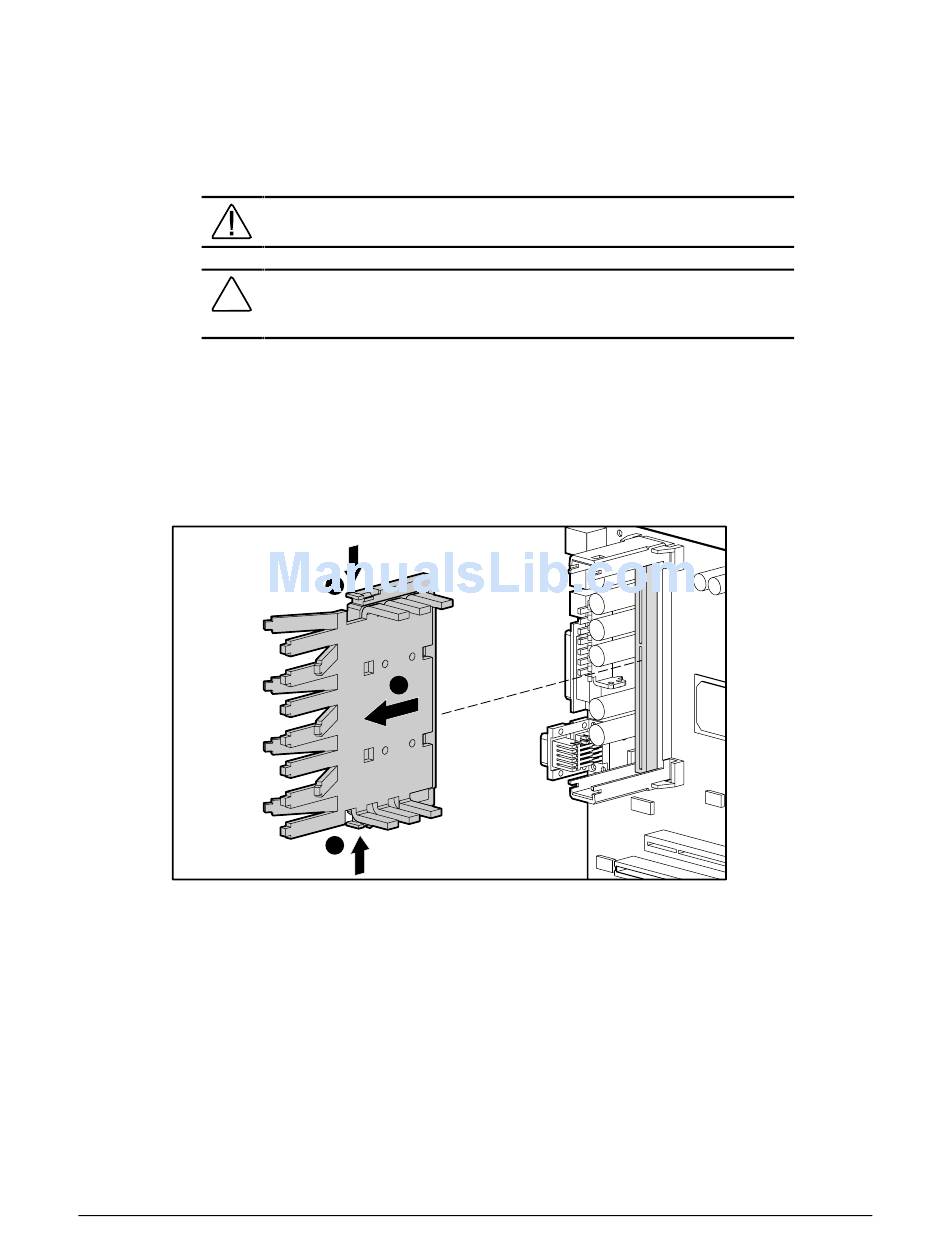

Figure 3-28. Removing the processor from the system board
To install a new processor, reverse the above procedure.
NOTE: Before installing a processor, be sure the release latches are in the locked (out) position.
This will cause the latches to click into place when the processor is properly seated.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the
internal system components to cool before touching.
CAUTION: Before removing the access panel, ensure that the workstation is
turned off, all cables are disconnected from the back of the workstation, and the
power cord is disconnected from the grounded AC outlet.
2
.
1
2
1
1
, then lift the processor
