Speaker - Compaq AP200 Maintenance And Service Manual

3-28 Removal and Replacement Procedures

Speaker

To remove the speaker:
1. Perform the service preparations shown on page 3-2.
2. Remove the access panel.
3. Disconnect the speaker cable from the audio board.
4. Remove the four screws that secure the speaker to the side of the drive cage
remove the speaker

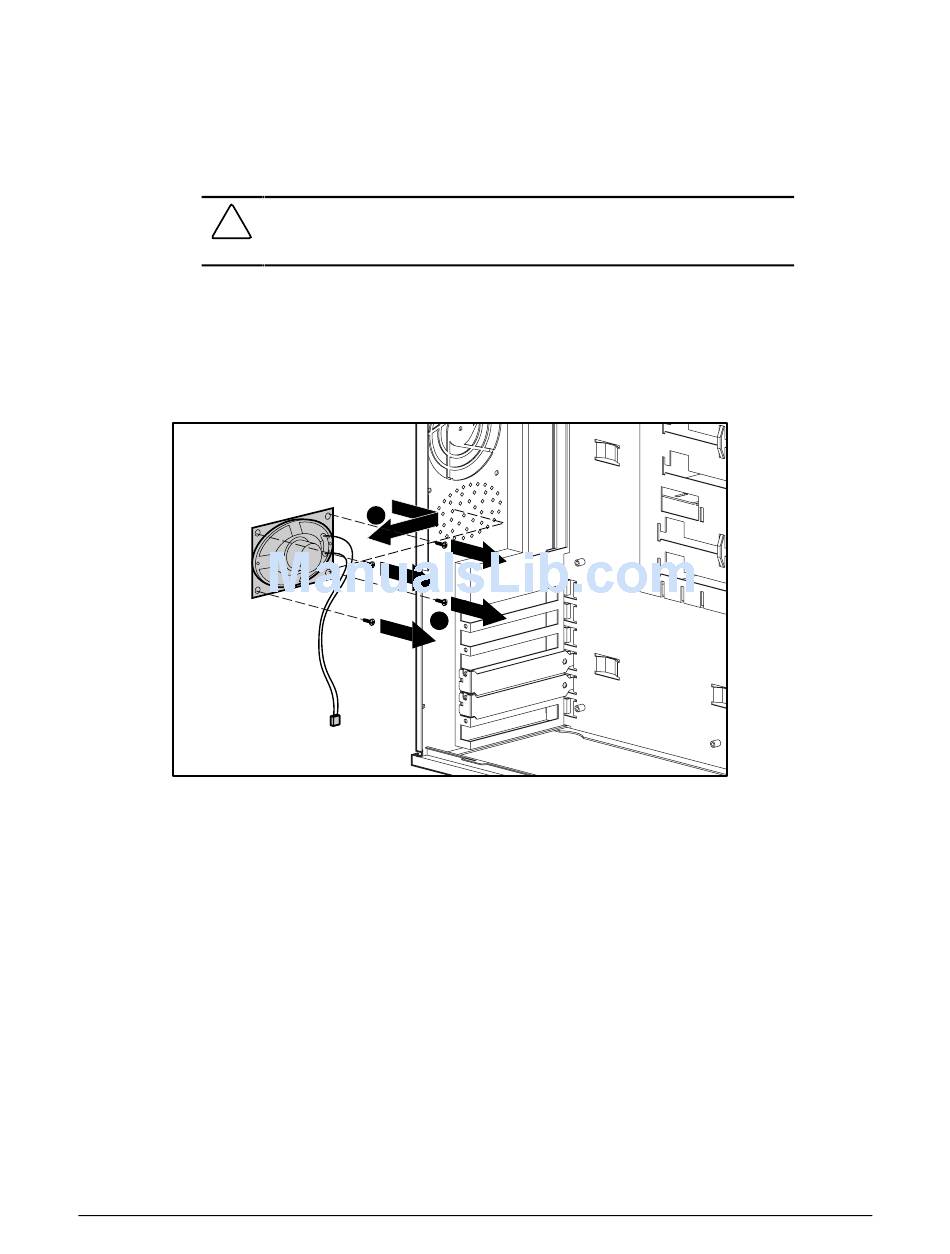

Figure 3-30. Removing the speaker
To reinstall the speaker, reverse the above procedure.
CAUTION: Before removing the access panel, ensure that the workstation is
turned off, all cables are disconnected from the back of the workstation, and the
power cord is disconnected from the grounded AC outlet.
