I/O Panel

To remove the I/O panel:
1. Perform the service preparations shown on page 3-2.
2. Remove the access panel.
3. Remove all expansion boards.
4. Disconnect all cables that are attached to the system board.
5. Remove the system board.
6. From the back of the chassis, push in and lift the I/O panel out.

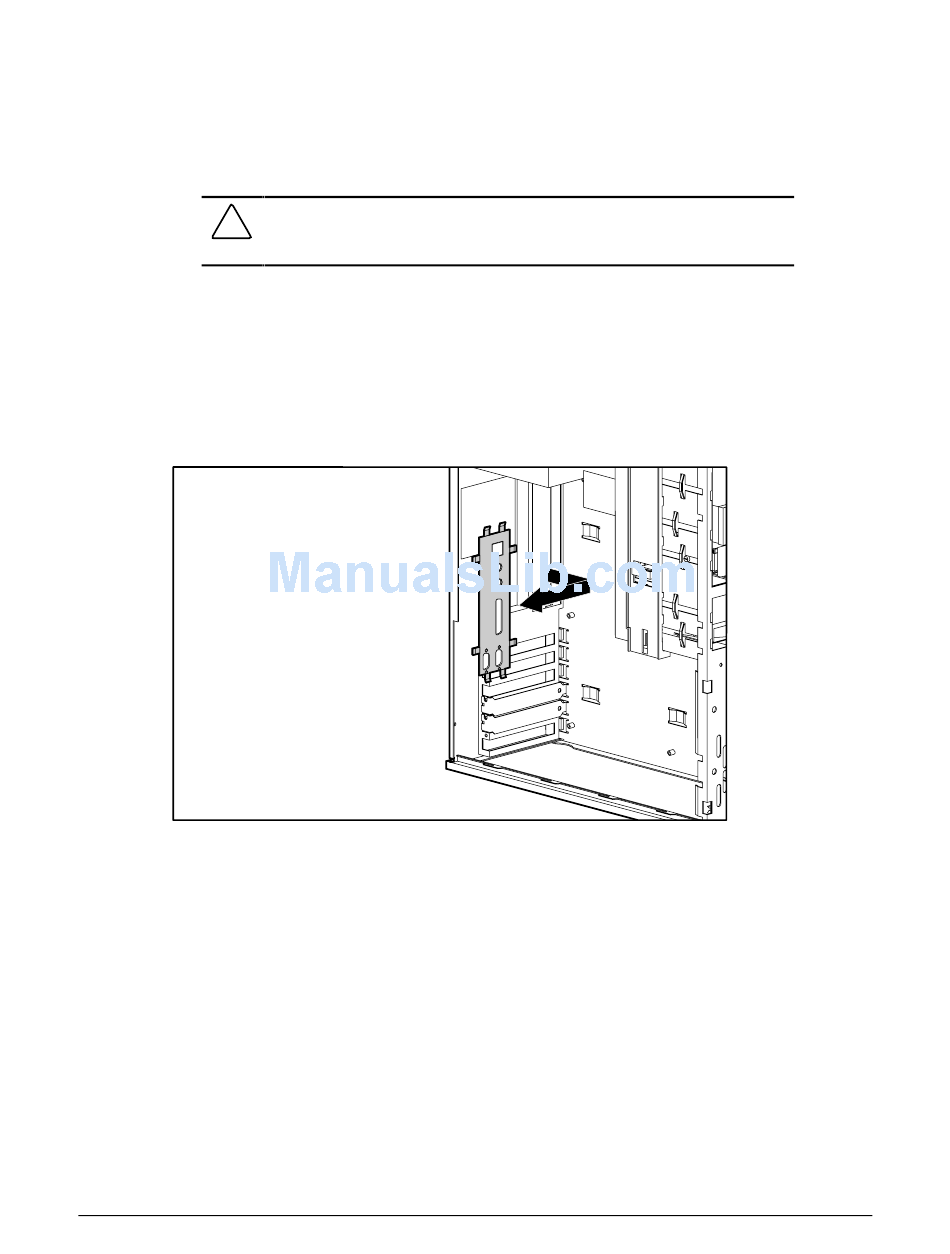

Figure 3-34. Removing the I/O panel
To replace the I/O panel, reverse the above procedure.
CAUTION: Before removing the access panel, ensure that the workstation is
turned off, all cables are disconnected from the back of the workstation, and the
power cord is disconnected from the grounded AC outlet.
Compaq Professional Workstation AP200 Maintenance and Service Guide
3-33
