Expansion Boards

The following illustration identifies the physical location of expansion slots. See the
corresponding table for component names.

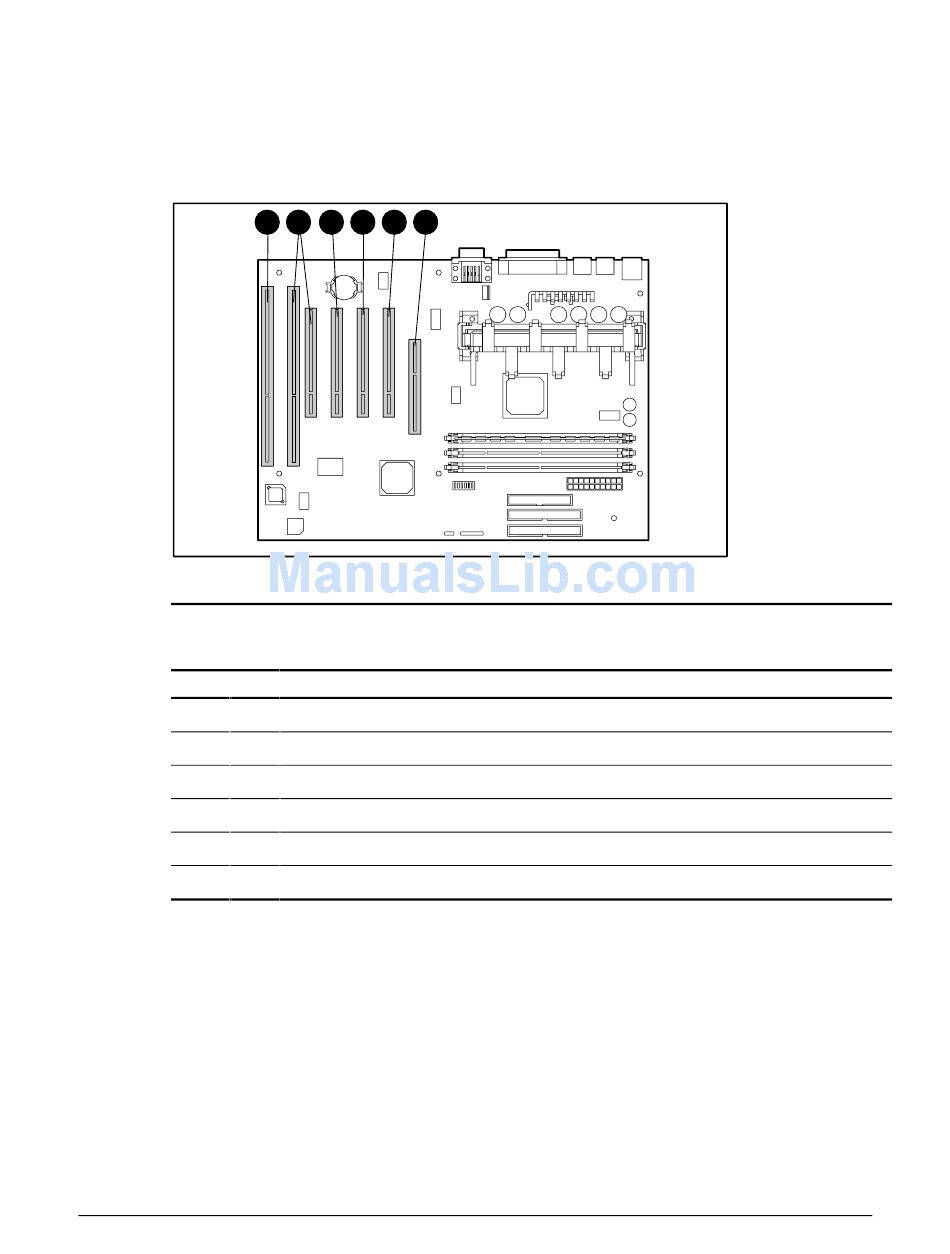

Figure 3-22. Overview of expansion slots
Reference
1
2
3
4
5
6
1 2 3 4 5 6
ISA slot (audio card installed)
Combination slot for either an ISA or a PCI expansion board
PCI slot (open)
PCI slot (NIC controller installed)
PCI slot (SCSI controller on select models)
Accelerated Graphics Port (AGP) slot
Table 3-2

Expansion Slots
