3-14 Removal and Replacement Procedures
5. Press the drivelock to unlock the drive.

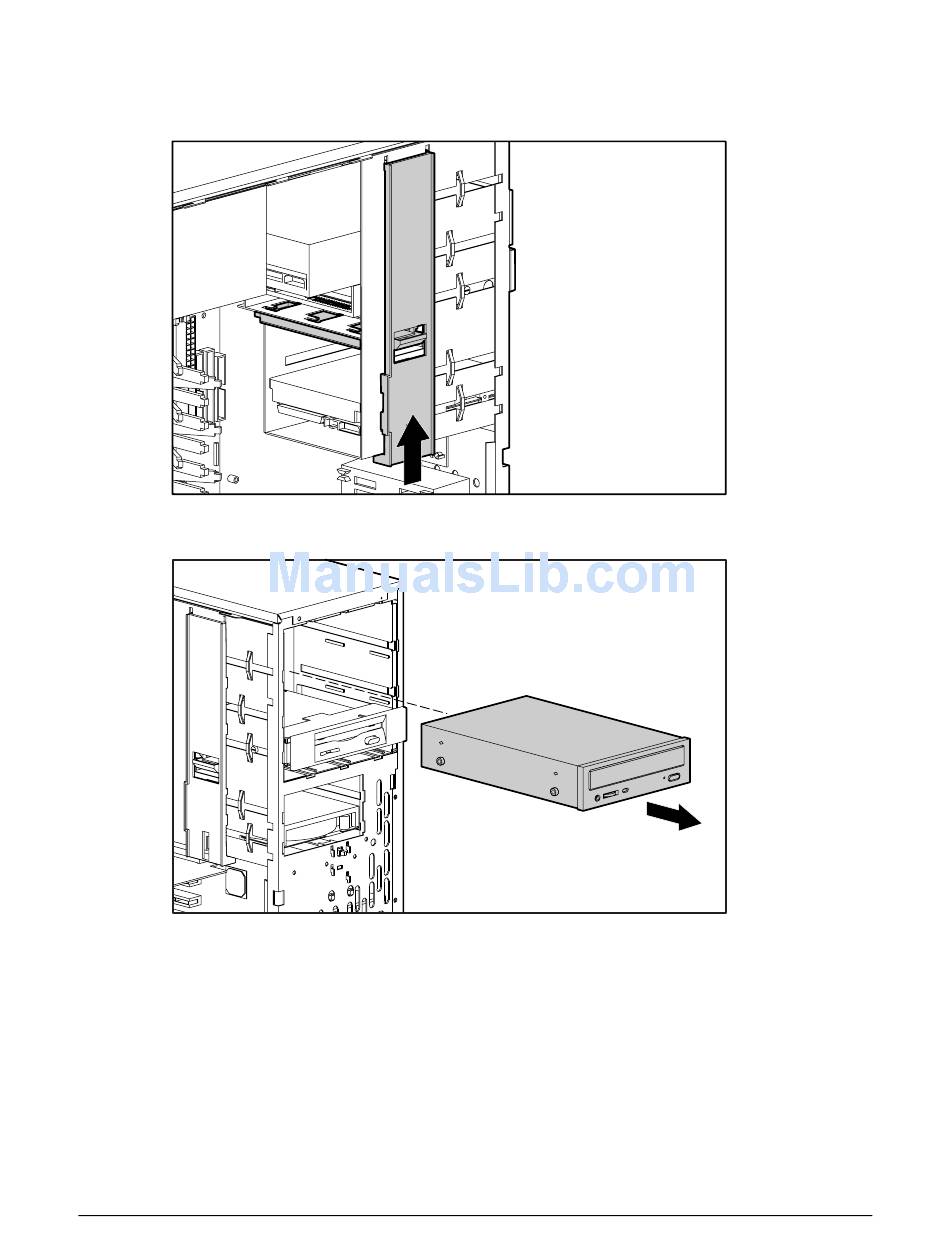

Figure 3-16. Releasing the drive with the drivelock
6. While pressing the drivelock, pull the drive out of the drive bay.
Figure 3-17. Removing a 5.25-inch drive
To replace the drive, install two guide screws on each side of the replacement drive (in the
bottom holes), be sure the guide screws line up with the guide slots, and slide the drive into the
drive bay until it snaps into place.
