3-40
Removal and Replacement Procedures
6. Rotate the drives 90 degrees, then reinstall them into the drive bays.
IMPORTANT: The diskette drive should always be placed in the bay 3, the bay nearest the
internal 3.5-inch drives, for proper placement within the chassis.

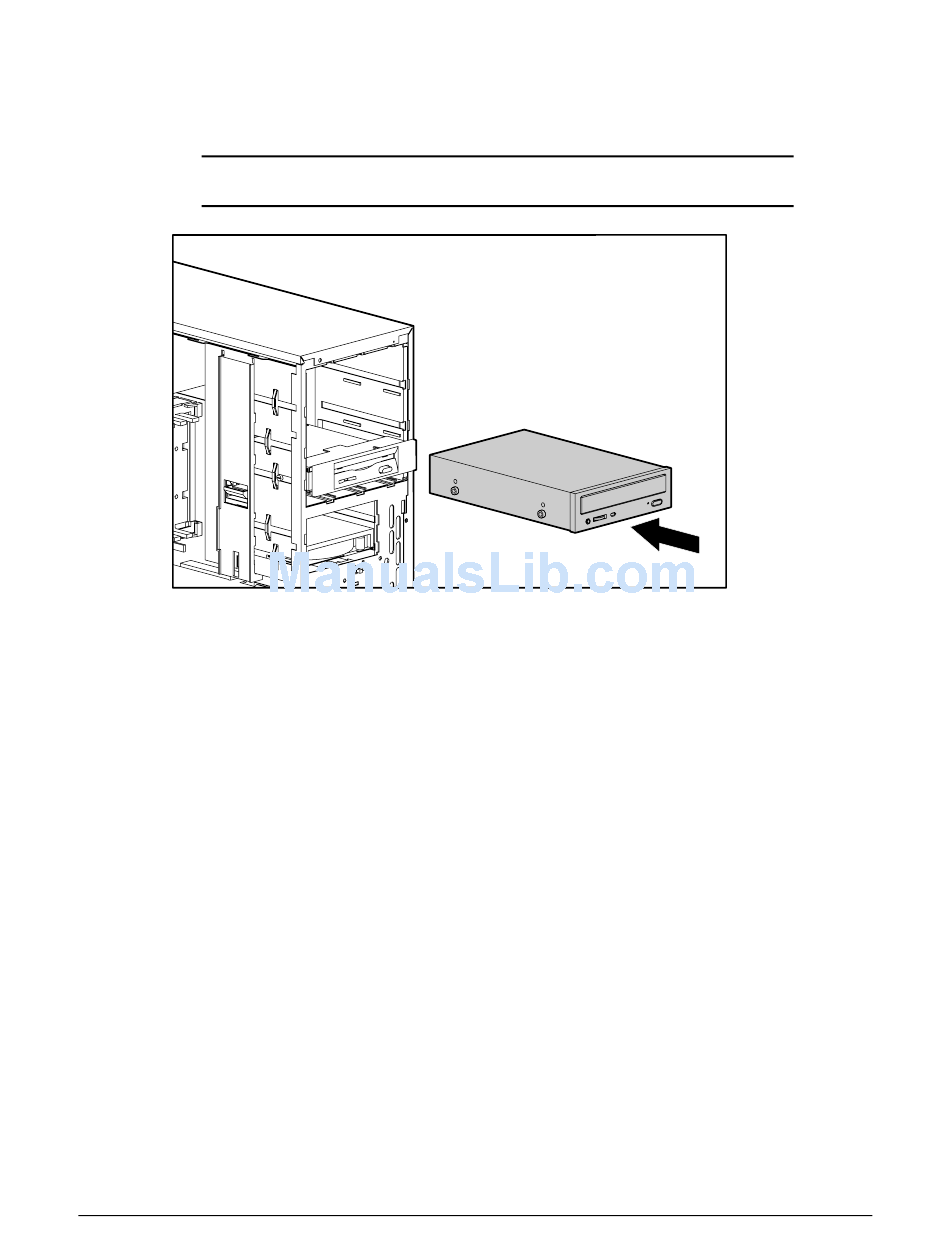

Figure 3-41. Installing a drive in the minitower configuration
7. Reconnect the cables to the drives.
