6-6 Jumper and Switch Information
Drive Size:
Pin 1
J1B
NOTES:
1. All jumper and switch settings are shown in the
factory default setting, including those not labeled.
2. Termination is disabled/removed.

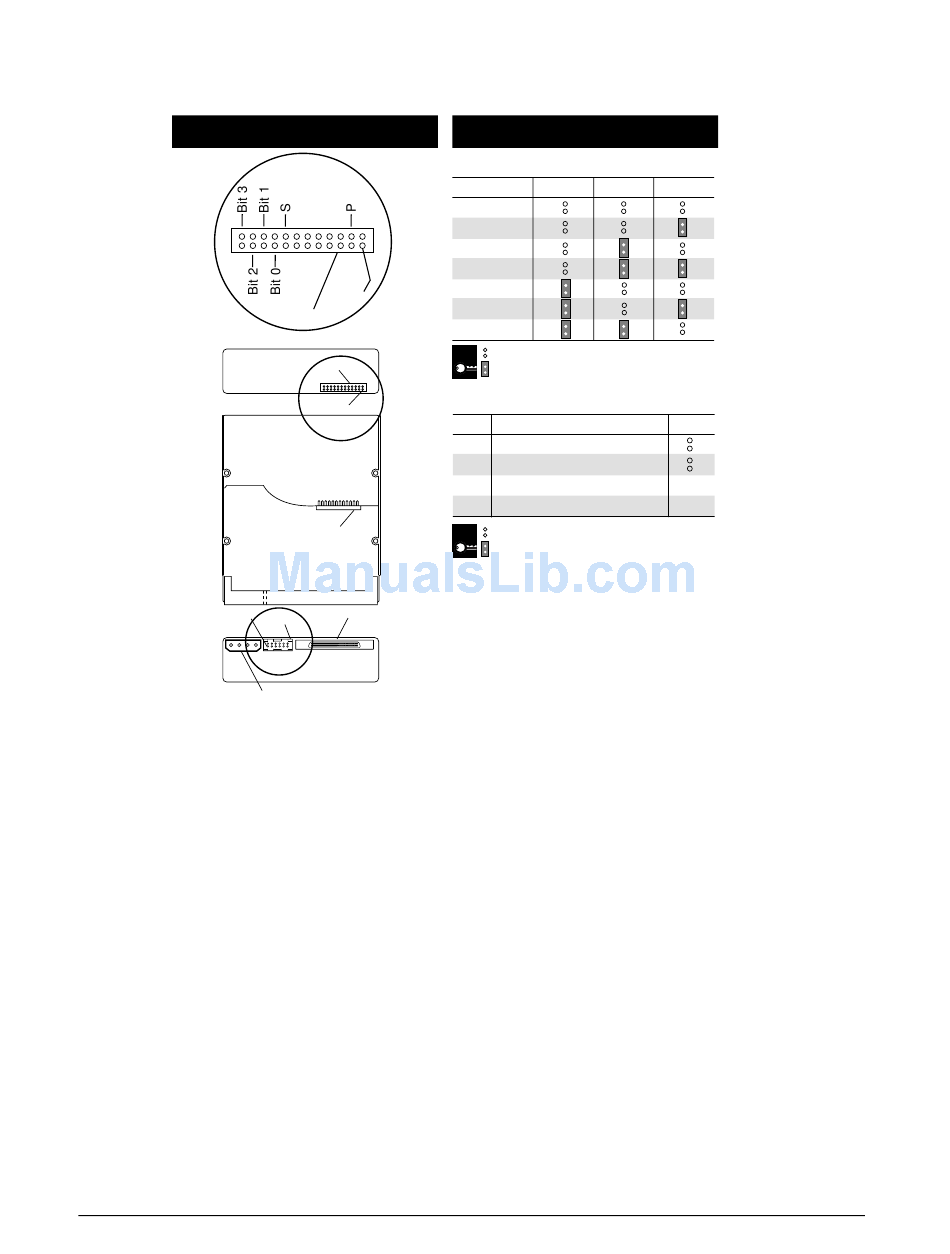

Figure 6-5. Jumper positions for the 4.3-GB hard drive (DDRS-34560)
4.3 GB
Pin 1
J2
J2
Pin 1
Printed
Circuit
Board
J2
SCSI
POWER
DDRS-34560
Model:
SCSI ID Settings
SCSI ID Bit 2 Bit 1
0
1
2
3
4
5
6
Jumper NOT Installed
Key
Jumper Installed
Default Settings
Signal Description
S Start Unit Command Enabled
P Parity Enabled
W Write Protect Disabled
X Synch Data Transfer Enabled
Key Jumper NOT Installed
Jumper Installed
NOTE:
This drive is intended for non-pluggable
applications only. Migration to a
Hot-Pluggable Drive Tray is not supported.
Bit 0
Jumper
n/a
n/a
