3-22 Removal and Replacement Procedures

Card Guide

To remove the card guide:
1. Perform the service preparations shown on page 3-2.
2. Remove the access panel.
3. Remove any full-length expansion boards.
4. Push down on the two tabs on the top of the card guide
5. While holding the tabs down, remove the guide from the chassis

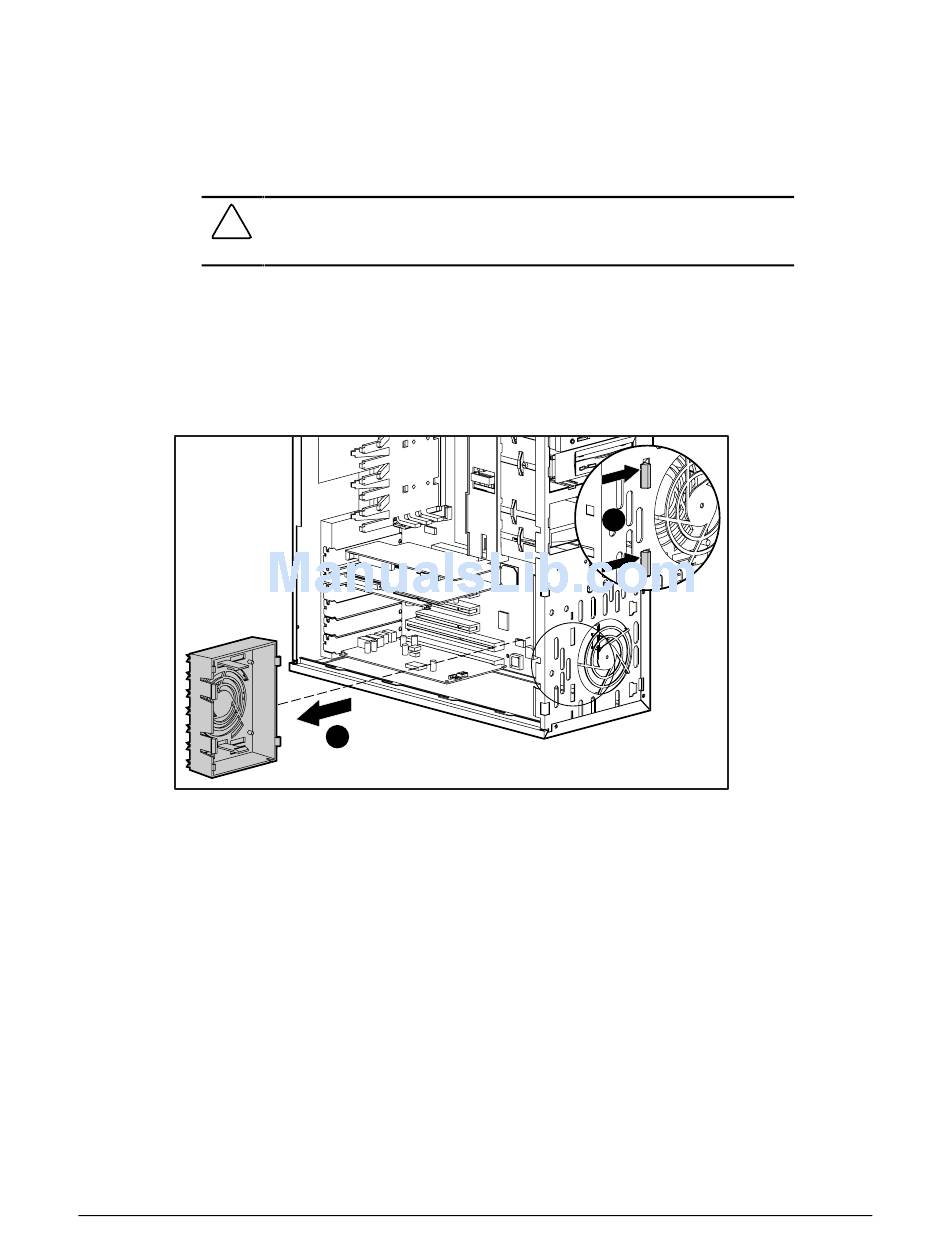

Figure 3-25. Removing the card guide
To replace the card guide, reverse the above procedure.
CAUTION: Before removing the access panel, ensure that the workstation is
turned off, all cables are disconnected from the back of the workstation, and the
power cord is disconnected from the grounded AC outlet.
2
1
.
2
.
1
