3-12 Removal and Replacement Procedures
6. While pressing the drivelock, pull the drive out of the drive bay.
1

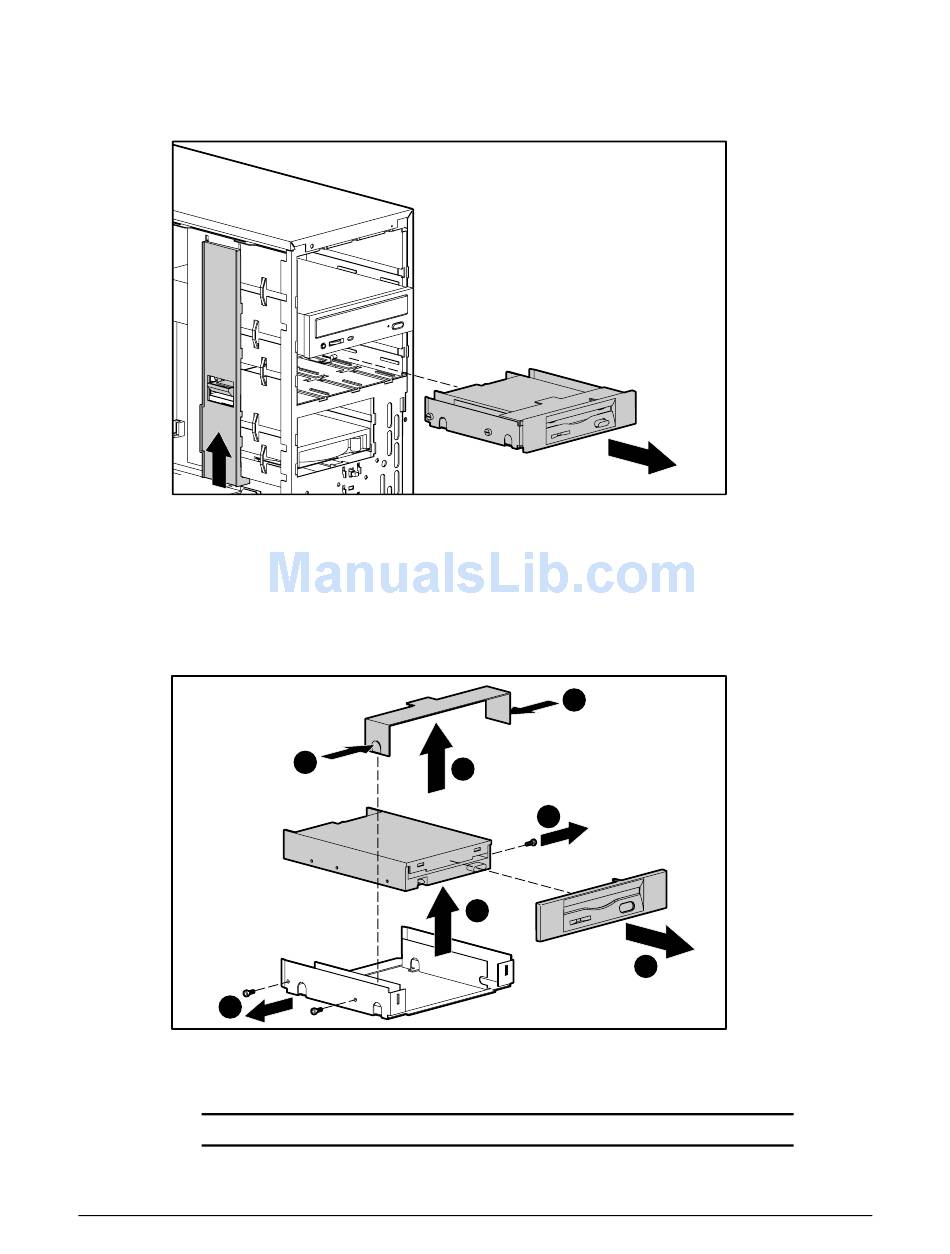

Figure 3-13. Removing a 3.5-inch drive from a 5.25-inch drive bay
2
7. Remove the bracket brace from the top of the drive adapter by squeezing in on both
sides, then rotate the brace up and out 3 .
8. Remove the drive bezel . 4
9. Remove the screws that secure the drive to the drive adapter .
5
10. Remove the drive from the drive adapter .
1
1
2
4
5
3
4
Figure 3-14. Removing a 3.5-inch drive from the 5.25-inch drive adapter
To replace the drive, reverse the above procedure.
IMPORTANT: The primary 3.5-inch diskette drive should only be installed into bay 3.
