3-35
4. Lift the battery out of the holder.

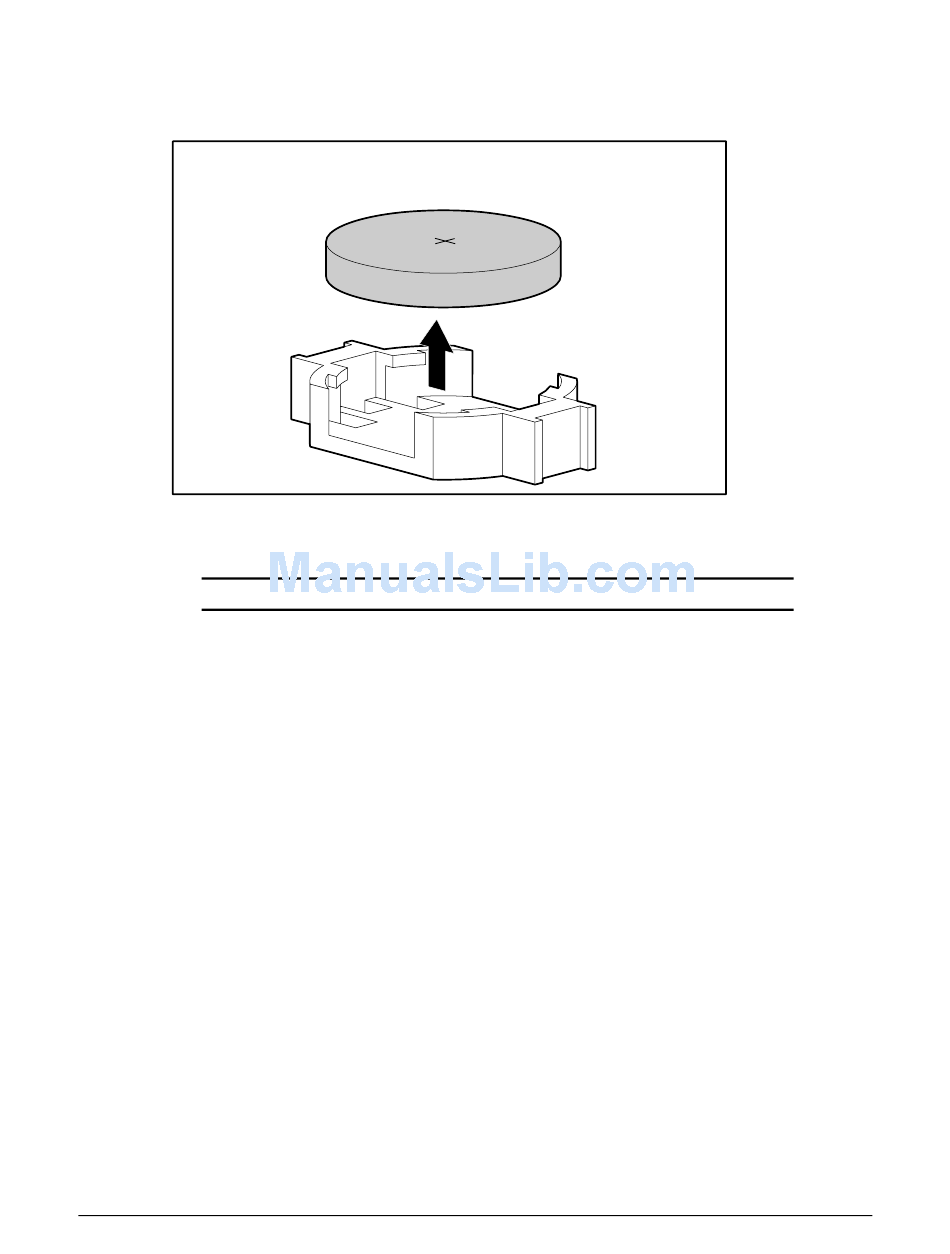

Figure 3-36. Removing the battery
To replace the battery, slide the replacement battery into position with the positive side up.
IMPORTANT: Positive polarity should be positioned up.
NOTE: The battery holder automatically secures the battery in the proper position.
Compaq Professional Workstation AP200 Maintenance and Service Guide
