Chapter 1
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a reference for spares parts for the
Compaq Professional Workstation AP200.

Mechanical Parts

1

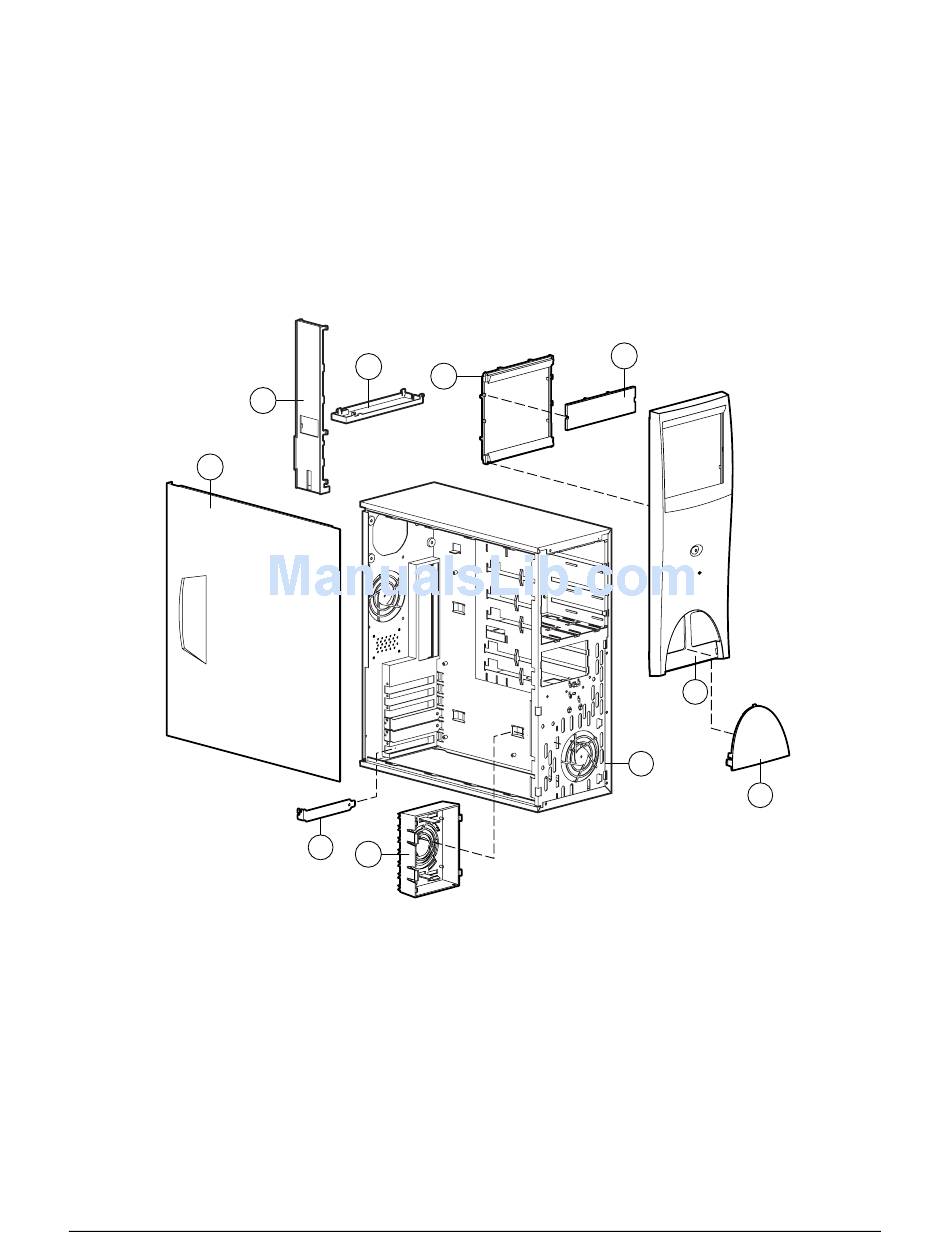

Figure 1-1. Exploded view of the Compaq Professional Workstation AP200 mechanical parts.
74f
74g
73a
74i
74d
74e
Compaq Professional Workstation AP200 Maintenance and Service Guide
2
3
2
1-1
