3-4 Removal and Replacement Procedures

Access Panel

To remove the workstation access panel:
1. Perform the service preparations shown on page 3-2.
2. Remove the two thumb screws that secure the access panel to the workstation chassis.
3. Slide the access panel back about 1 inch (2.5 cm), then lift it off the workstation.

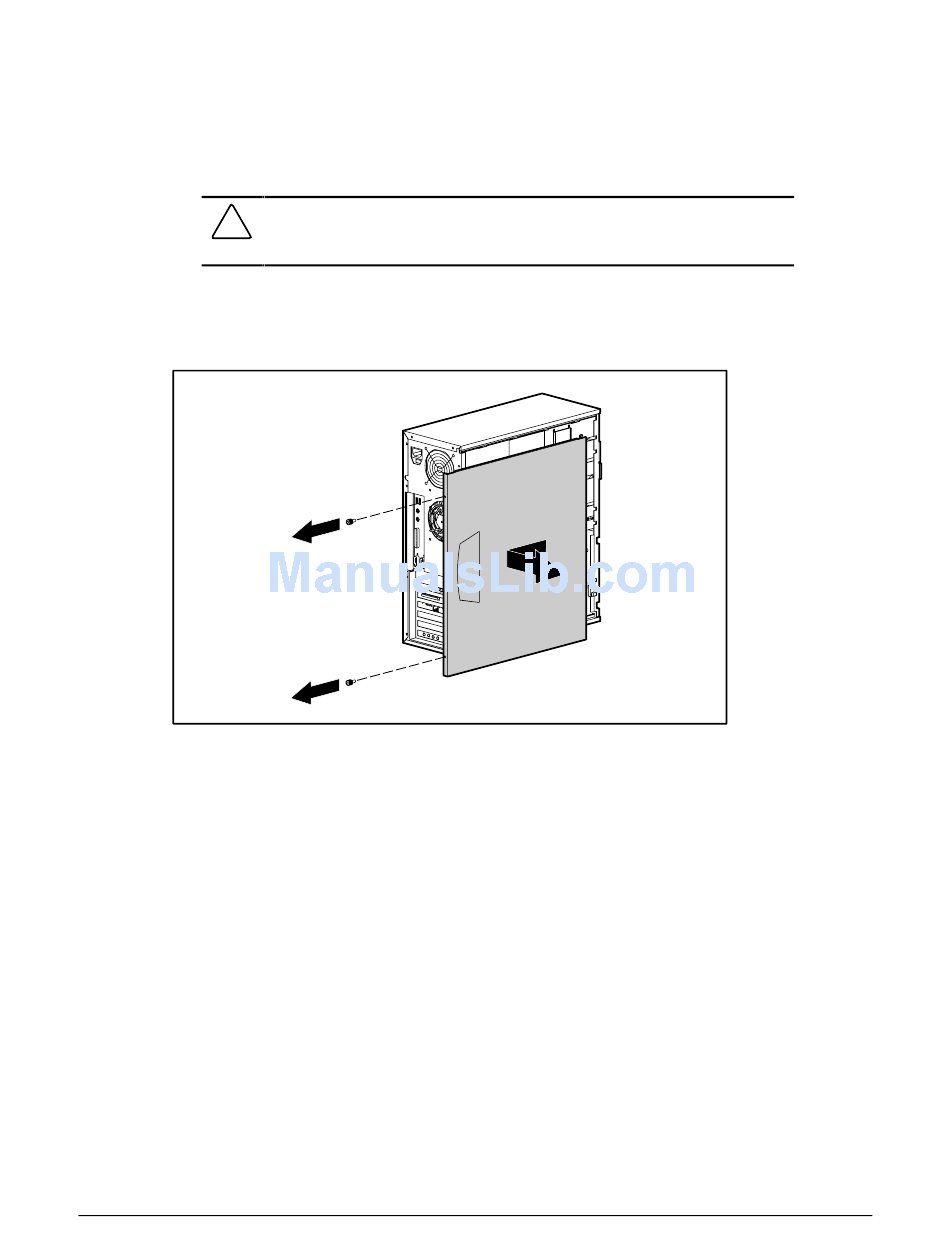

Figure 3-4. Removing the access panel
To replace the access panel, reverse the above procedure.
CAUTION: Before removing the access panel, ensure that the workstation is
turned off, all cables are disconnected from the back of the workstation, and the
power cord is disconnected from the grounded AC outlet.
