Chapter 9
9. Liner/Batch Takeup Kit

9.1 Description

70
The liner/batch takeup kit is an optional factory-installed device
that makes it possible to auto-dispense self-adhesive labels from
the liner (peel-off/self-strip operation), or to wind up printed labels,
tickets, or continuous stock internally (batch takeup operation.)
The kit consists of three main parts:
• A stepper motor that drives the liner drive roller in the print unit
and the liner/batch takeup unit. The liner drive roller is fi tted as
standard even when the kit is not installed.
• A liner/batch takeup unit that takes up the spent liner or the
printed media to be rewound for later use.

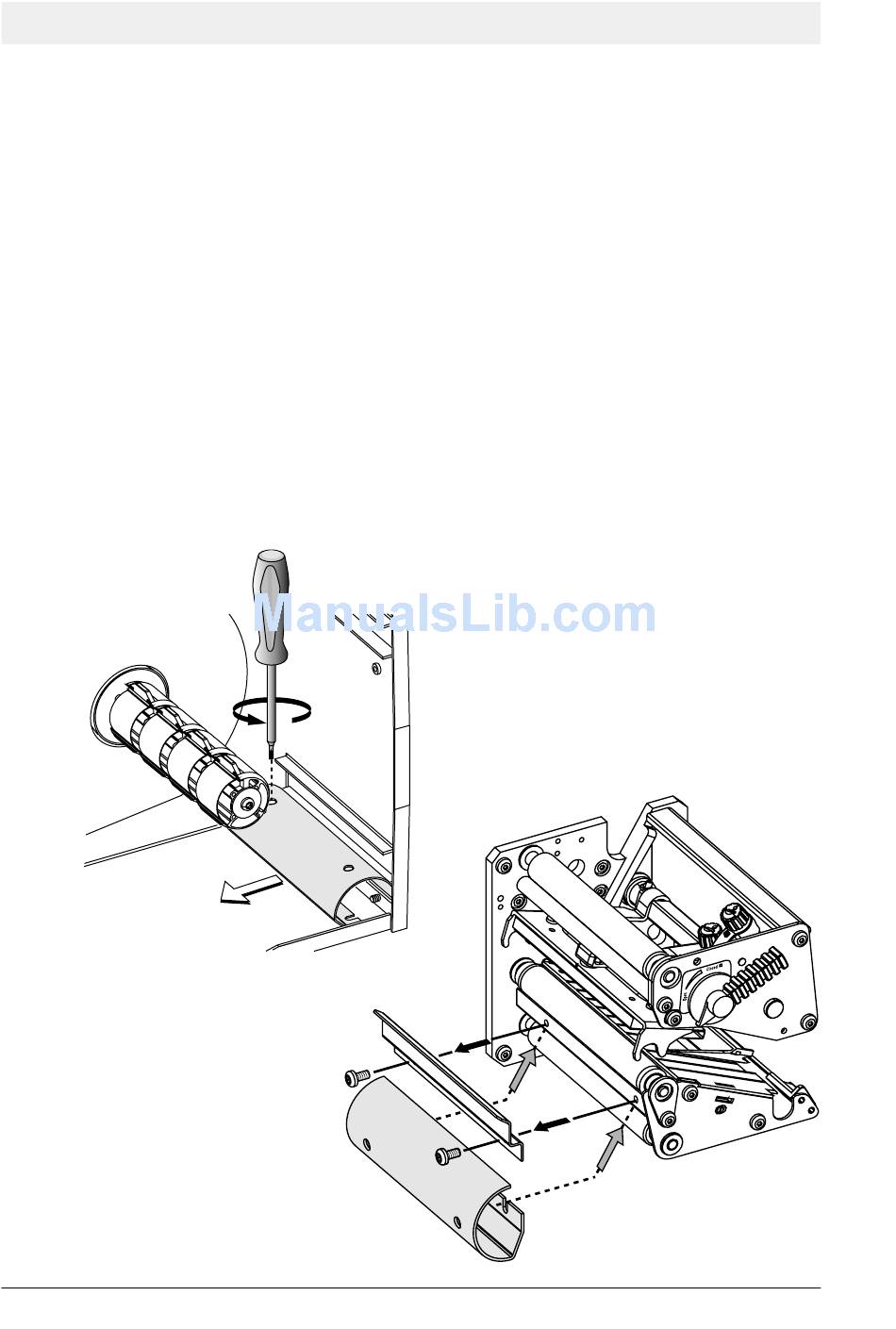

• A guide plate that replaces the tear bar when labels or other
types of printed media are wound up internally (also see Chap-
ter 8.5.) When not used, the guide is fi tted by means of one
#T20 Torx screw at the rear of the media compartment.
