Chapter 5 Media Supply
5.1 Internal Supply,
cont.
Media Roll Retainer
26

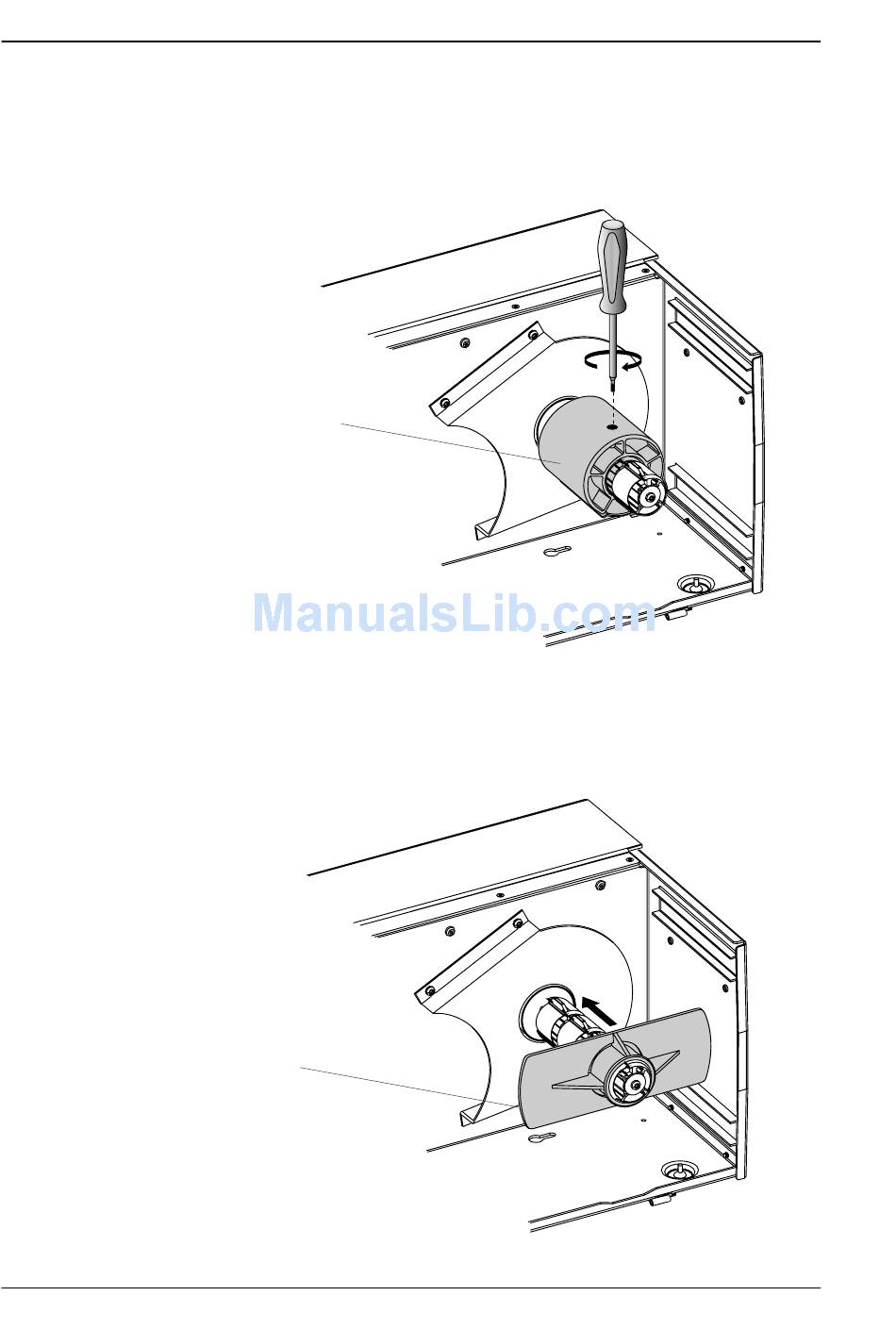

An adapter (standard accessory) can be fi tted onto the media supply
hub in order to accept media rolls with 76 mm (3 inches) cores.
The adapter is locked by means of a #T20 Torx screw. Be careful
not to let the screw hit the leaf springs or the cams of the hub mod-
ules.
3-inch Adapter
An optional media roll retainer can be pressed on the hub package
(but not on the adapter) to hold large media rolls and to prevent the
media from getting misaligned on the roll.
