6.2 Dismantling

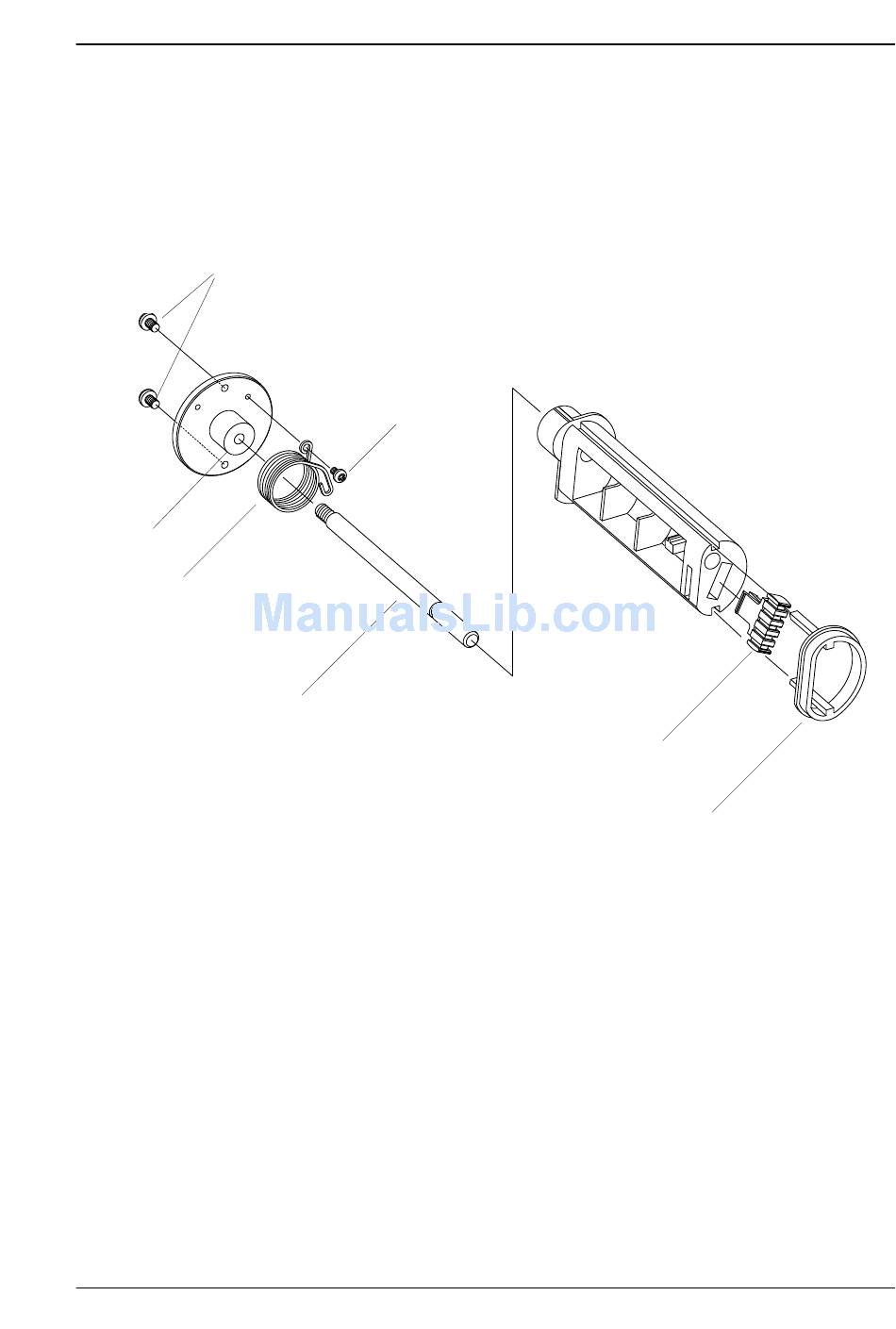

#T20 Torx Screws (2x)
Flange
Torsion Spring
Intermec EasyCoder 501 XP – Service Manual Ed. 4
The label slack absorber unit is fi tted to the center section by means
of two #T20 Torx screws inserted through the center section from
the electronics compartment. The shaft should be screwed into the
fl ange with a tightening torque of 5 Nm.
#T10 Torx Screw
Shaft
Chapter 6 Label Slack Absorber
Grip (green)
Edge Guide
(green)
