1.1 Identifi cation, cont.
Intermec EasyCoder 501 XP – Service Manual Ed. 4
The printer is as standard provided with one serial RS-232 port
and one parallel Centronics port. In addition, one extra interface
board can be fi tted, see Chapter 16.
Finally, you may want to inspect the electronics compartment. To
do so, carefully follow the instructions in Chapter 13.
CAUTION!
Always turn off the power and remove the power
cord before opening the cover over the electronics
compartment! Dangerous voltage!
In the electronics compartment, check:
• Type of CPU board?
- Check number of Flash SIMMs.
- Check number and size of DRAM SIMMs.
• Any optional interface board fi tted?
- Check type, straps, and optional circuits.
Refer to Chapters 15 and 16 for more information.

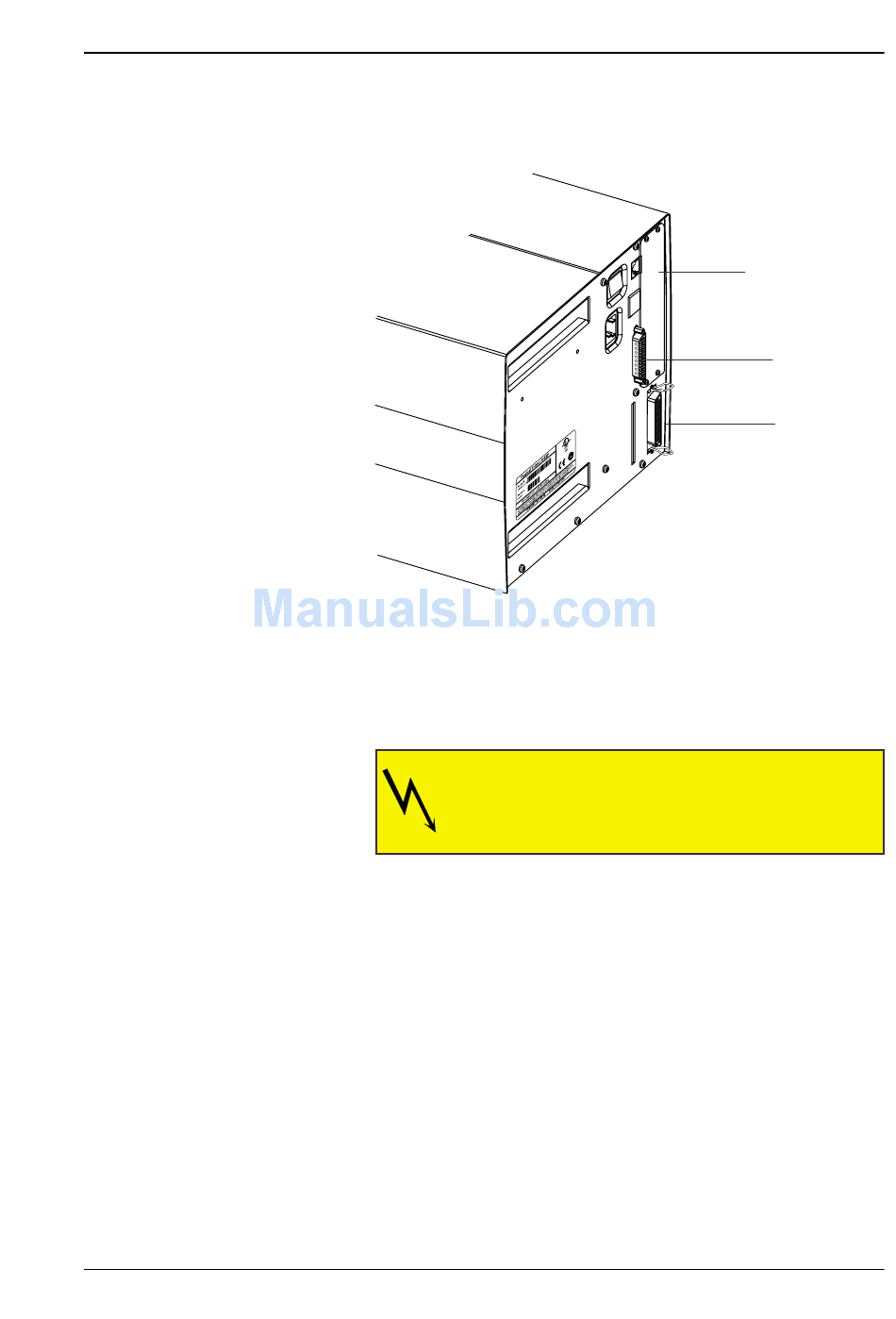

Chapter 1 Models and Options
Provision for
one interface board
Parallel Port
Centronics
Serial Port
RS-232
