Chapter 9 Liner/Batch Takeup Kit

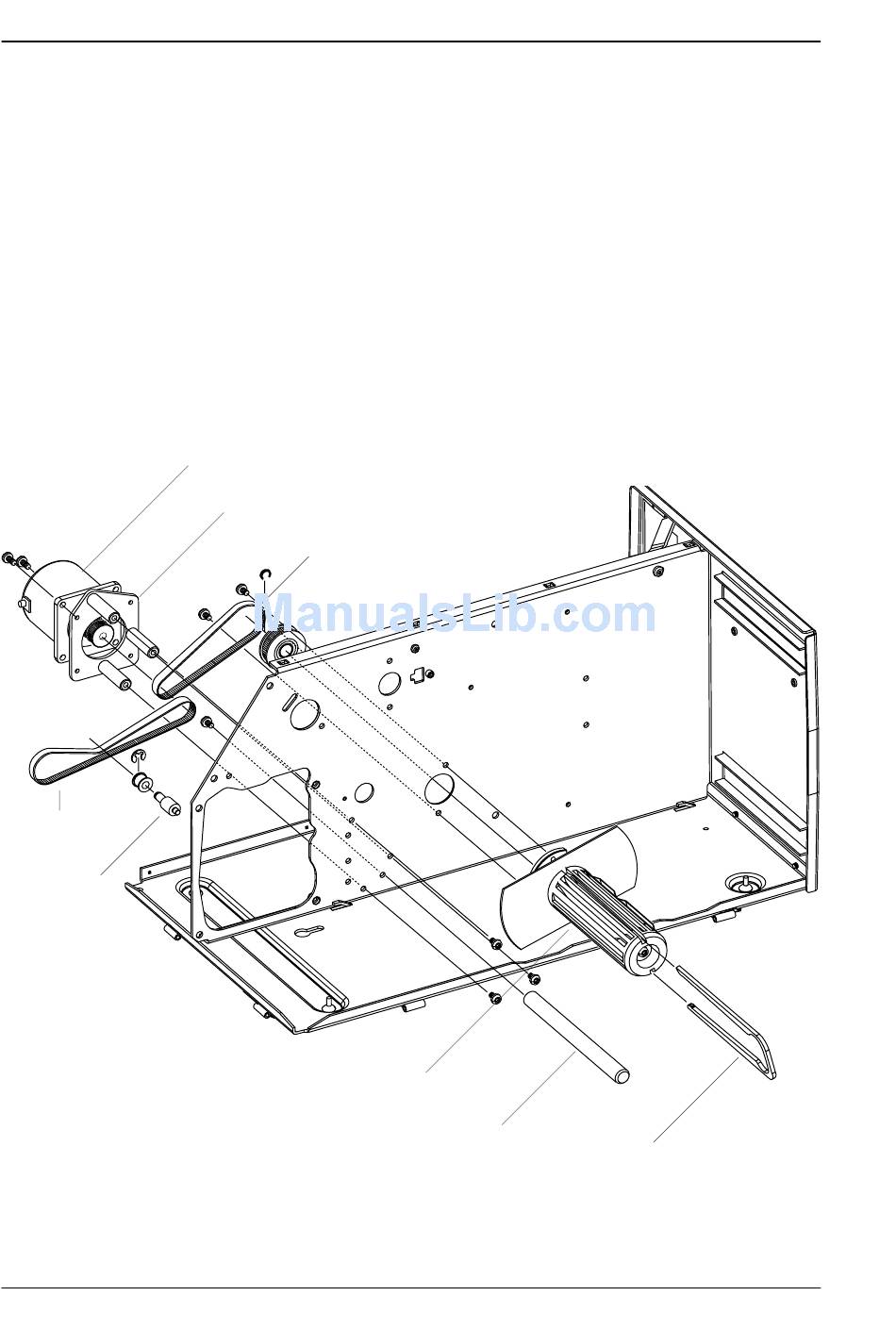

9.2 Main Parts

Belt to
Liner Drive Roller
Tension Roller
72
The stepper motor is fi tted to the printer's center section by means
of a motor support plate. It drives the liner/batch takeup unit and
the liner drive roller in the print unit via two belts. The tension of
these belts can be slightly adjusted by moving the stepper motor
and/or support plate before the screws are tightened.
The takeup unit is fi tted with a brace, that holds the liner or media.
The unit is fi tted to the printer‚s center section by means of two
#T20 Torx screws that can be accessed through holes in the CPU
board (turn off the power fi rst!)
A break shaft in front of the takeup unit guides the liner or media
under the slack absorber.
The stepper motor is connected to P421 on the CPU board, see
Chapter 15.3.
Stepper Motor
Motor Support Plate
Belt to Liner/Batch Takeup Unit
Liner/Batch Takeup Unit
Break Shaft
Intermec EasyCoder 501 XP – Service Manual Ed. 4
Brace
