8.11 Media Feed
Principles, cont.
Intermec EasyCoder 501 XP – Service Manual Ed. 4
When using peel-off operation, the labels would drop from the
liner and get stuck on for example the table if you use a Start Adjust
value as large as -175. You should rather use a slightly smaller
value so the rear edge of the label remains stuck to the liner, but
not more than the label easily can be pulled away, manually or by
an automatic applicator. Use a Stop Adjust value of around -60 (≈5
mm/0.20 inches), that is after the printing is completed 5 mm less
of paper feed than normal will be performed. However, if you still
want to print from the top of the label, you must compensate by
a Start Adjust value of -115 (≈10 mm/0.39 inches.) Note that the

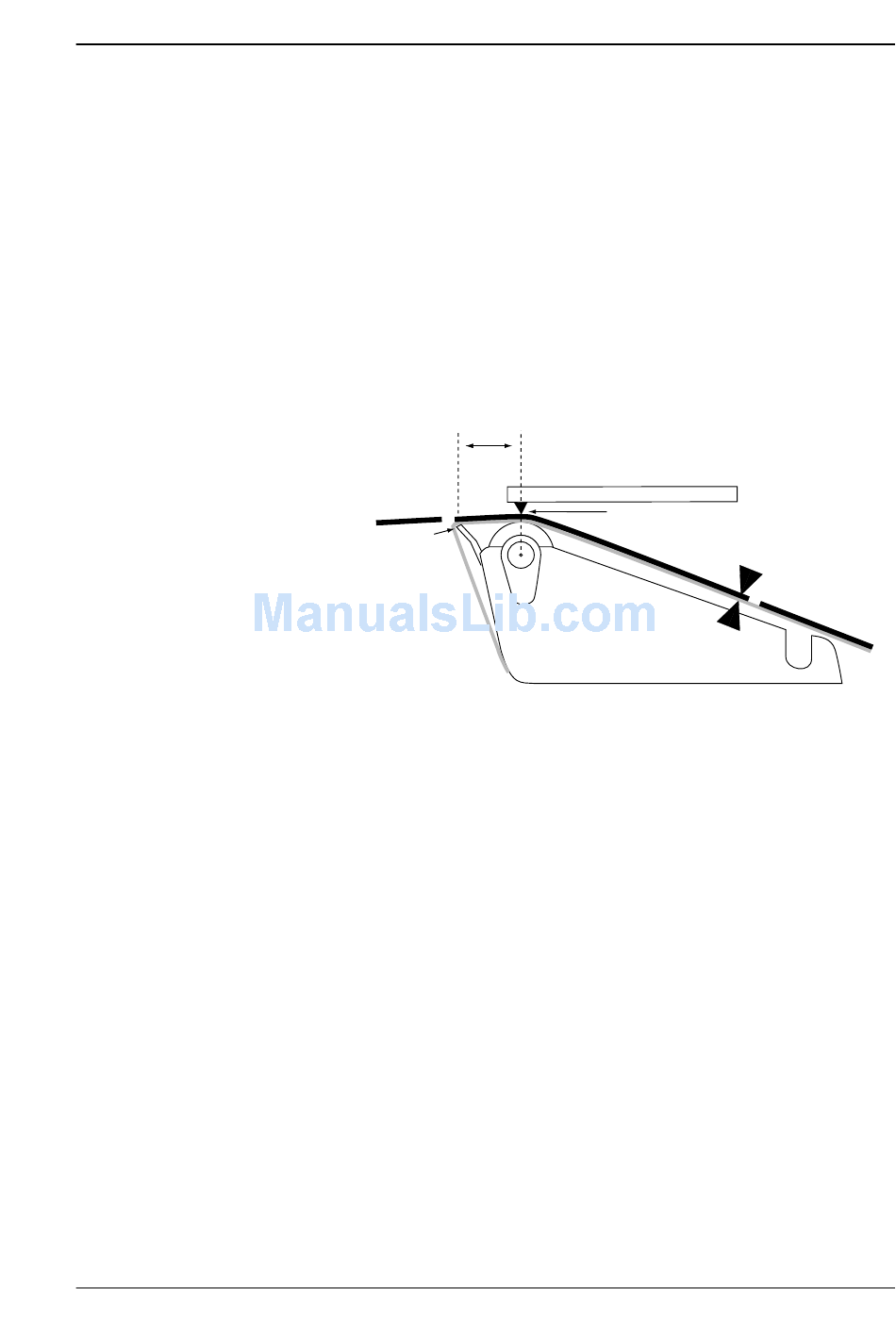

sum of the Start and Stop Adjust values always is 175 dots (15
mm/0.59 inches), which equals the distance between dot line and
tear bar.
15.7 mm
Tear Off
Edge
Cut off operation is another case where you have to use Start and
Stop Adjust. The cutting edge of the cutter is situated approxi-
mately 35 mm (1.38 inches) in front of the dot line and 20 mm
(0.79 inches)in front of the tear bar. To aviod cutting the label
in two, you must use a Stop Adjust of around +250 dots (≈21
mm/0.83 inches) to feed out the required extra 20 mm (0.79
inches) of media after the printing is completed and before the
cutter is activated. Now, this means that you will start the printing
well down the label, unless you compensate with a Start Adjust-
ment of approximately -425 dots (≈35 mm/1.38 inches.) Note that
the sum of the Start and Stop Adjust values is still 175 dots (15
mm/0.59 inches.)
A special case is tickets with black marks. It is recommended to
place the black mark adjacent to the perforation or the intended
tear off line. If the black mark is placed further down the web, this
must be compensated for by a negative Stop Adjust setting.
Chapter 8 Print Unit
Peel off (print at top of label):
Start Adjust: -115
Stop Adjust: -60
Dot Line on Printhead
Label Stop
Sensor
