10.2 Installation

Intermec EasyCoder 501 XP – Service Manual Ed. 4
The Label Taken Sensor Kit consists of:
• One Refl ecting Sensor assy. with cable and connector
• One Sensor Bracket
• One Screw
• One Installation Instructions booklet
The only tools needed are a set of Torx screwdrivers and a small
non-conductive straight-slot screwdriver.
The LTS must either be enabled by means of an LTS& ON state-
ment, or the status of the LTS has to be polled in the Fingerprint
program by means of the PRSTAT function, as otherwise the
printer will not react on the LTS signal.
• Make a simple program that checks the printer's status, for
example:
10 BREAK 1,88
20 BREAK 1 ON
30 ON BREAK 1 GOSUB 1000
40 FORMFEED
50 IF (PRSTAT AND 2) THEN BEEP
60 GOTO 50
70 END
1000 BREAK 1 OFF
1010 GOTO 70
RUN
You can break this program by transmitting the character X
(ASCII 88 decimal) on the standard serial interface "uart1:".
• WARNING!
Switch off the power. For double security, pull the power cord
out of the AC power receptacle at the rear plate of the printer.
• Open the right-hand door and the front hatch, and remove the
left-hand cover.

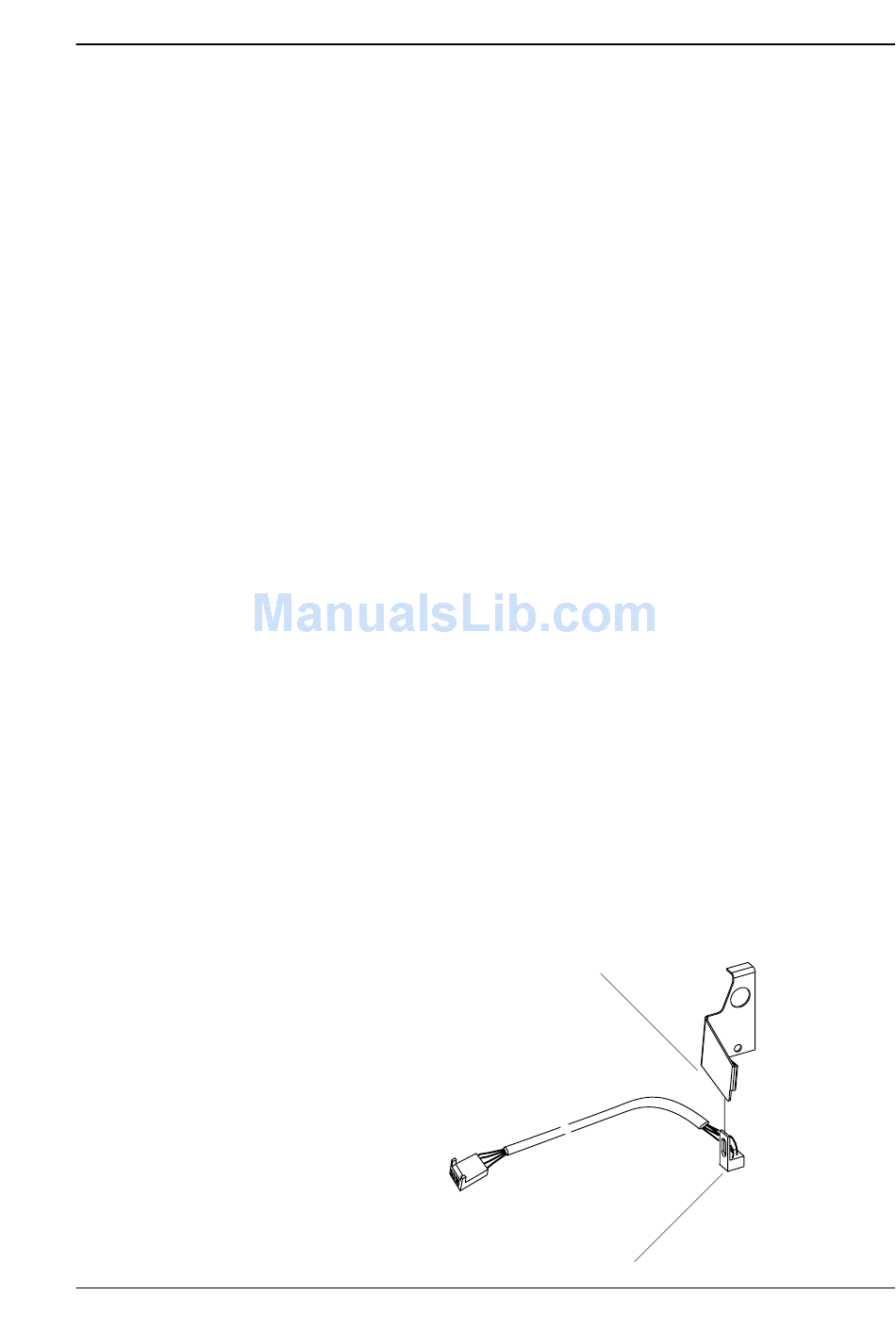

• In not already done before delivery, press the refl ecting sensor
assy. into the bracket as illustrated below.
Bracket
Chapter 10 Label Taken Sensor
Sensor assy.
