5. Media Supply
5.1 Internal Supply

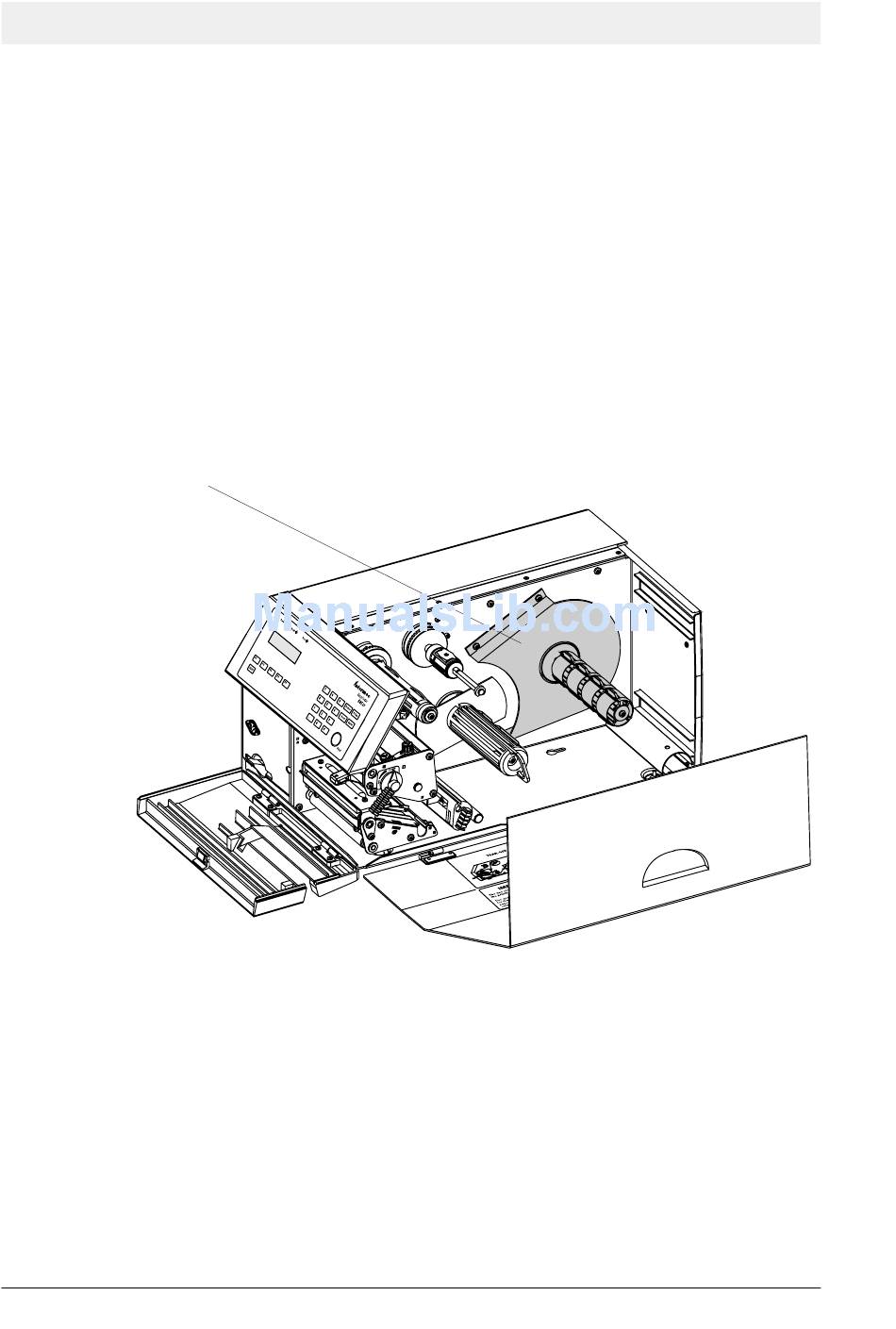

Media Supply Hub
24
The internal media supply consists of a shaft with four modular
hubs on which a media roll can be fi tted. The shaft is screwed into
a fl ange fi tted to the center section by means of two #T20 Torx
screws inserted from the electronics compartment. The hub mod-
ules are spring-loaded in order to fi t media roll cores with an inner
diameter between 38 and 40 mm (1.5 inches.)
A large crescent-shaped plate keeps the media roll aligned with the
print mechanism.
Maximum diameter of an internal media roll is 205 mm (8 inches)
and maximum width is 120 mm (4.7 inches.)
