8.7 Printhead, cont.
Dot-line
on printhead
Intermec EasyCoder 501 XP – Service Manual Ed. 4
Description, cont.
The 12 dots/mm (304.8 dpi) printhead contains 1280 dots, which
give a maximum print width of 106.7 mm (4.199 inches.) The
same unit of measure (dots) can be used both across and along the
feed direction.

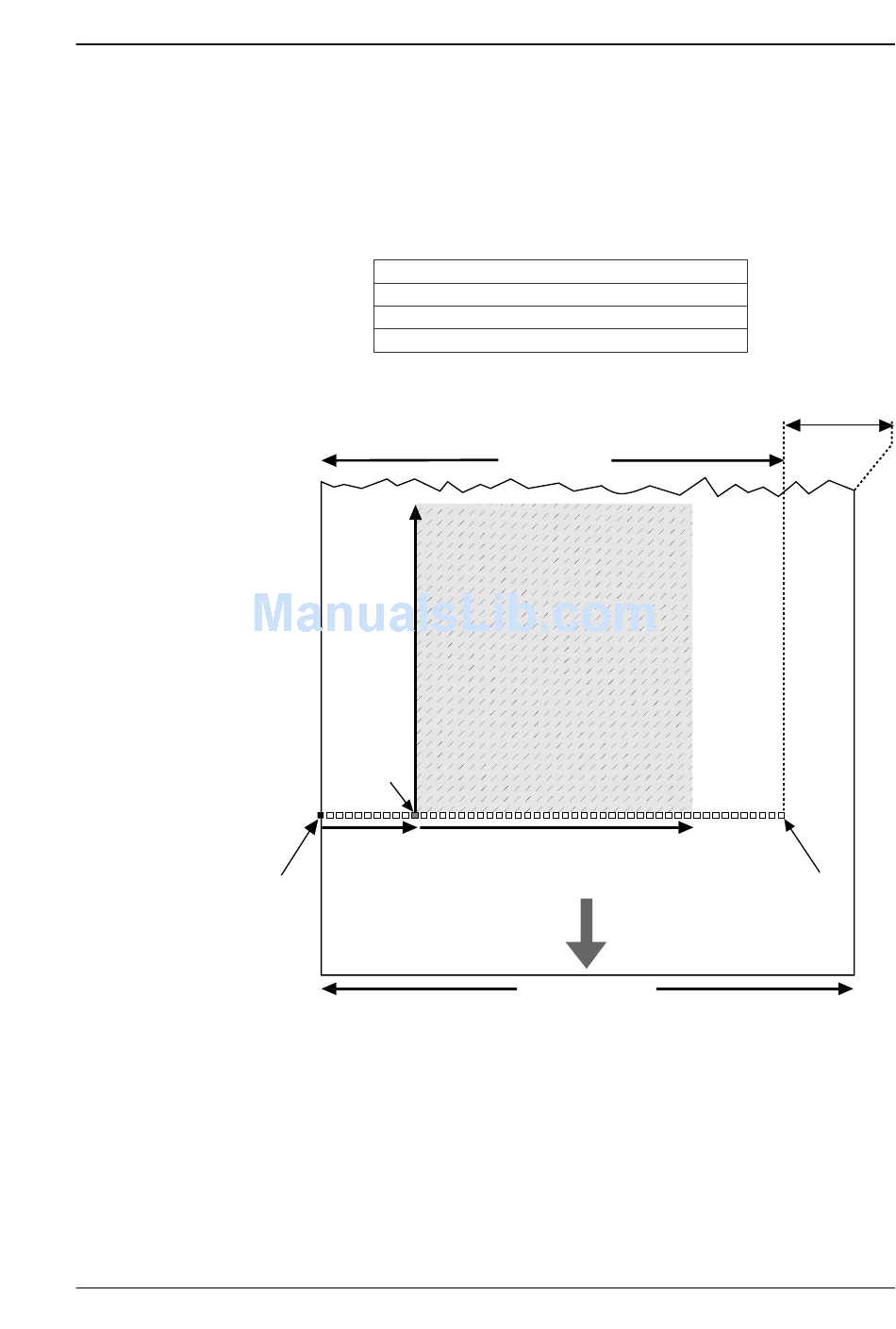

Specifi cations
Density
Print width
Number of dots
Dot size
Length
Origin
X-start Width
Dot 0
12 dots/mm (304.8 dpi)
106.7 mm (4.199 in)
1280
0.083 mm (3.28 mils)
106.6 mm (4.2 in)
PRINT PRINT
WINDOW WINDOW
FEED
DIRECTION
max. 120 mm (4.7 in)
Chapter 8 Print Unit
13.4 mm (0.52 in)
Dot 1279
