Description - Intermec EasyCoder PF2i Service Manual

Chapter 4—Chassis

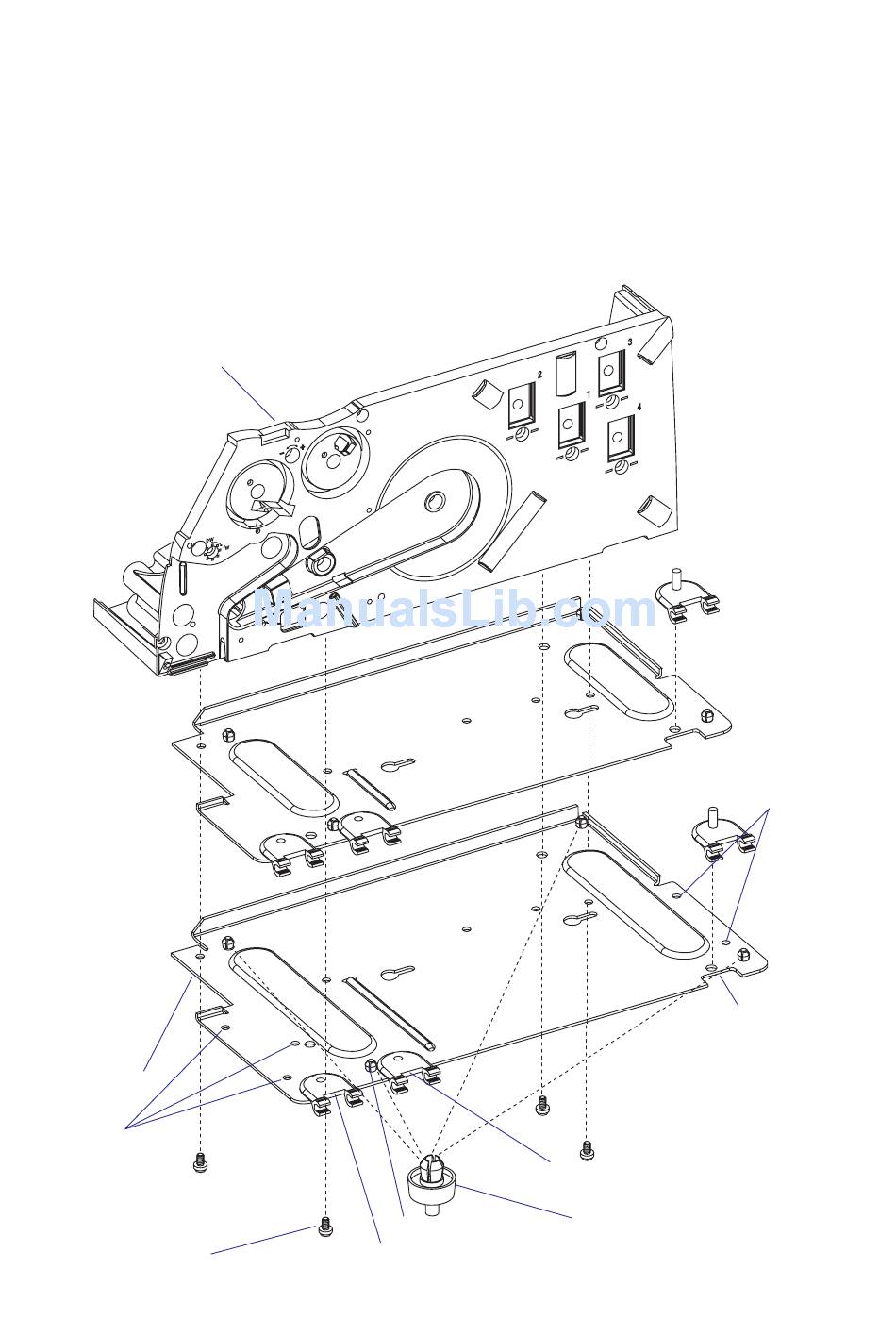

4.1 Description

Center section
Bottom plate
Provision
for cutter or
front door
#T20 Torx screws (x4)
50
The printer's chassis consists of two main parts:
• The center section
• The bottom plate
The center section and the rubber feet are common for EasyCoder PF2i,
PF4i, and PF4i Compact Industrial. EasyCoder PF2i and PF4i have plastic
hinges whereas EasyCoder PF4i Compact Industrial has metal hinges, see
Chapter 4.4.
EasyCoder PF2i
EasyCoder PF4i and
PF4i Compact Industrial
Rubber foot (x4)
Plastic hinge (always fi tted in PF2i and PF4i)
Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Plastic hinge (always fi tted in PF2i and
PF4i, but only used for short door)
Rubber foot (enlarged)
Provision for
Megatop
canopy
hinges
Provision for
rear hinge
in case of
long door
or Megatop
