Genlock Port

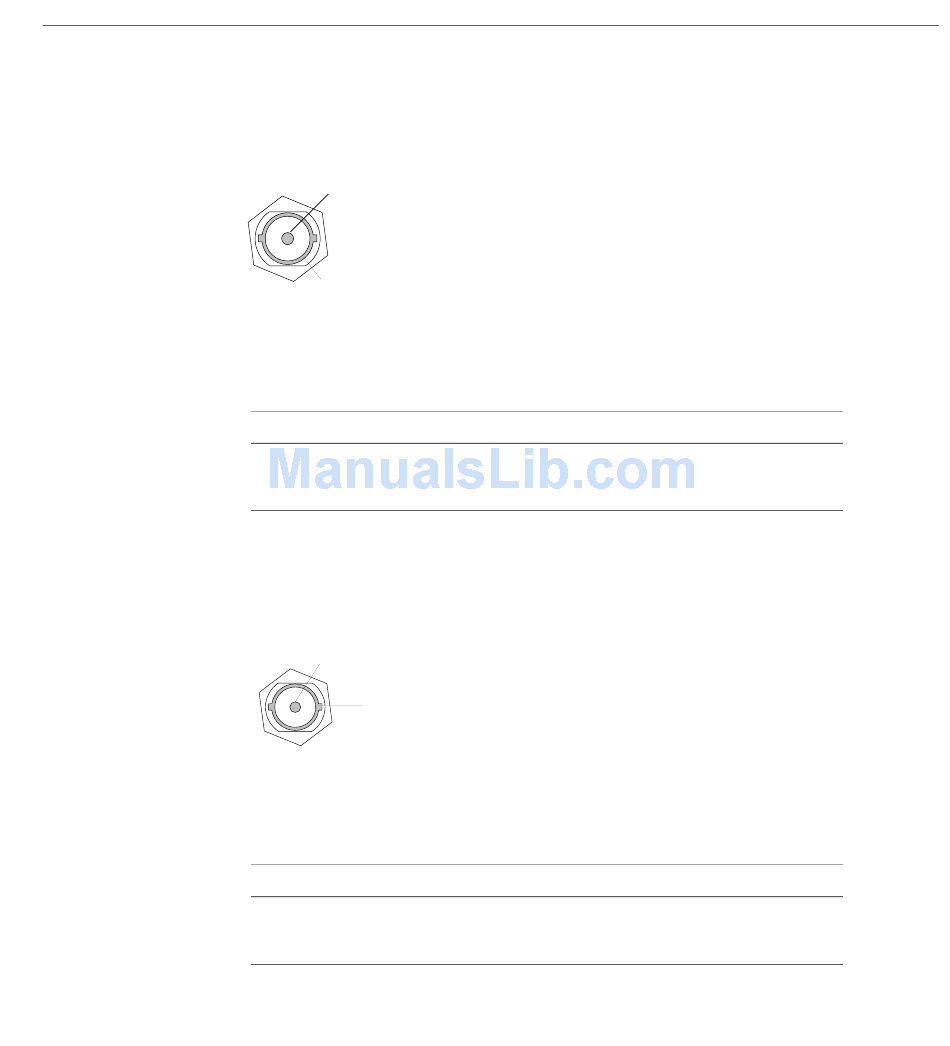

The following diagram shows the Genlock port.
1
2
Table B-18 shows the cable pinout assignments for the Genlock port on the VPro graphics
board.
Table B-18
Genlock Pinout Assignments
Pin
Assignment
1
Genlock Input/output video or 3.3V TTL signal levels
2
Sigma - return ground
Swap Ready Port
The following diagram shows the Swap Ready port.
1
2
Table B-19 shows the cable pinout assignments for the Swap Ready port on the VPro
graphics board.
Table B-19
Swap Ready Pinout Assignments
Pin
Assignment
1
Swapbuffer gang sync open Collector I/O
2
Signal return ground
VPro Graphics Board I/O Ports
241
