Battery

Provides the power to maintain the CMOS memory when the system is
turned off or unplugged.

Expansion Slots

The system features eight expansion slots: five PCI slots, one ISA slot, one
PCI/RAIDport, and one shared PCI/ISA slot.
The PCI bus processes peripheral transactions at a system clock speed of up
to 33 MHz.

I/O Connectors

The I/O connectors are located on the back panel of the system. Figure 16
shows the connectors and the table below provides the key to the figure.
A Parallel Port
B Serial Port 1
C Serial Port 2
D Keyboard Port

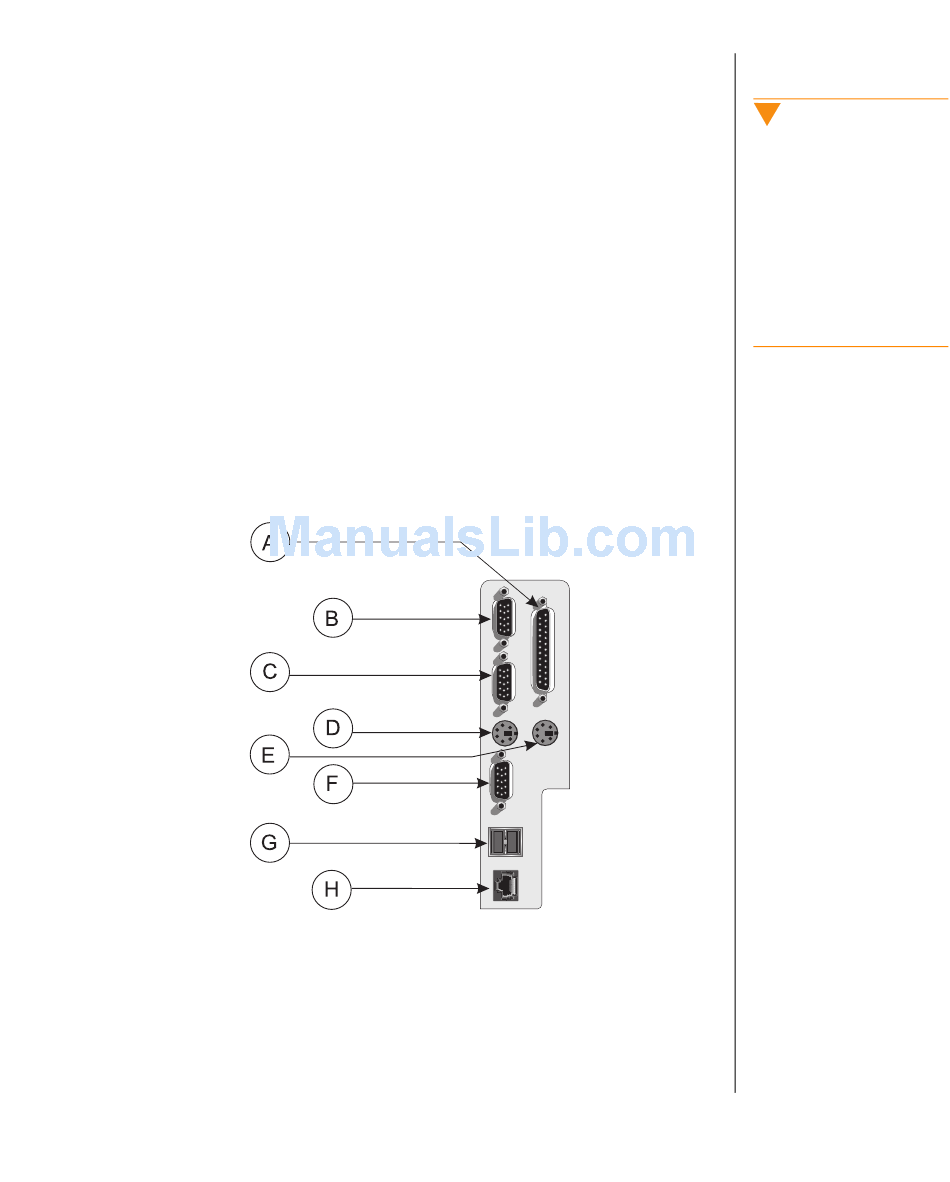

Figure 16: I/O Connectors
E Mouse Port
F Video Port
G Dual USB Ports
H RJ45 Ethernet Port with LED indicators
Caution!
There is a danger of
explosion if the battery is
incorrectly replaced.
Replace the battery only
with the same or equivalent
type recommended by the
manufacturer. Dispose of
used batteries according to
the manufacturer's
instructions.
System Board 35
