System Board

The system board functions as the main interface between the processor,
memory, and peripherals. See the table below and on the following page for
the key to Figure 15.

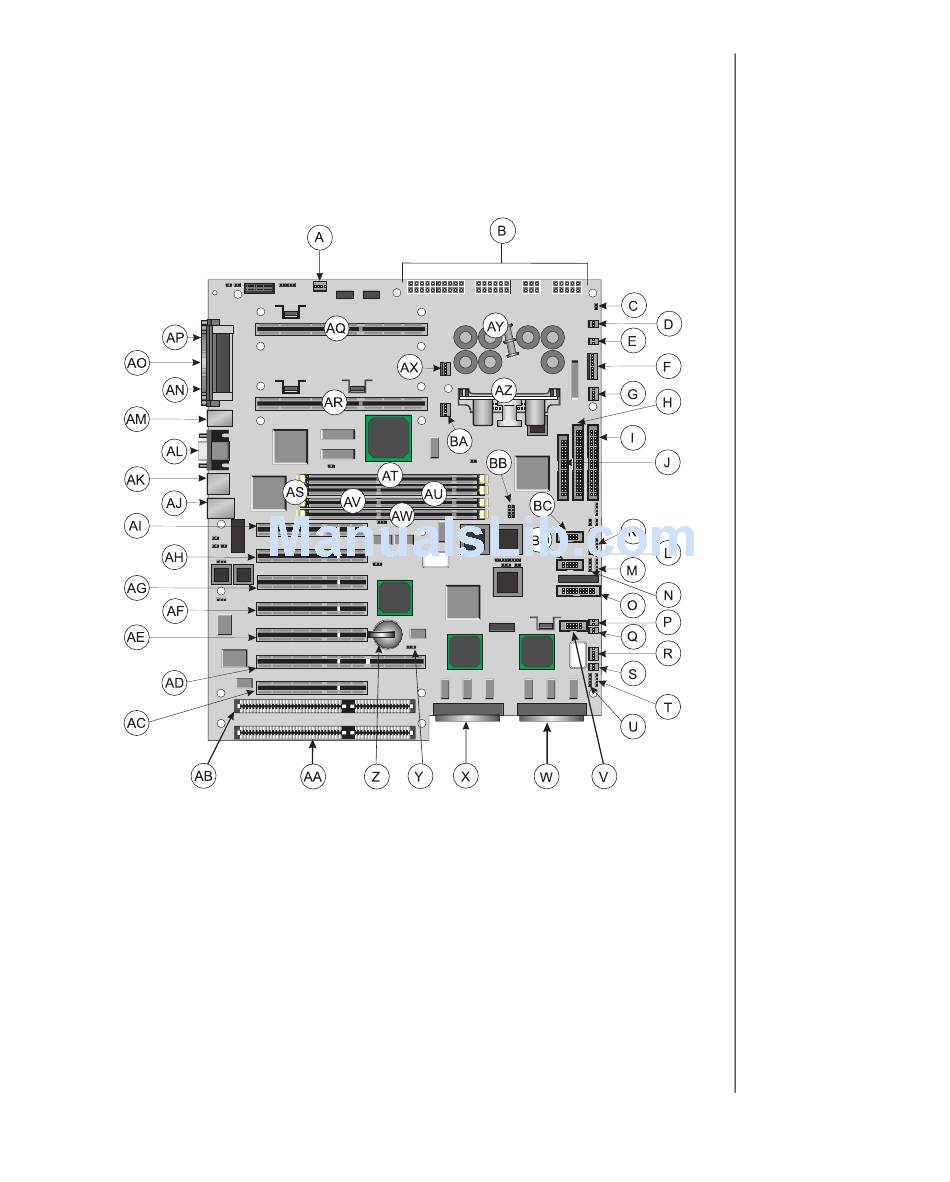

Figure 15: System Board Components
A Chassis fan connector
B Power connectors
C Standby 3.3-V power connector
D Soft power connector
E P5 fault reset connector
F Power supply auxiliary connector
G Chassis fan connector
H Secondary IDE connector
I Primary IDE connector
J Diskette connector
K Front panel connector
L Reset connector
M External HDD connector
N HDD LED connector
O Server management connector
P User NMI connector
Q EDC reset connector
R Chassis fan connector
S Cover intrusion switch connector
T Speaker connector

System Board
