GT350 F1 specifications
Product overview
The Gateway GT350 F1 is a dual-socket tower or 4U rack mountable server for flexible environment
delivering blazing performance and exceptional expansion capability. Offering high reliability, latest
technology, cost-effective growth, and comprehensive management features, Gateway GT350 F1 delivers
high-availability, power efficient solution in departmental and medium enterprise environment deployments.

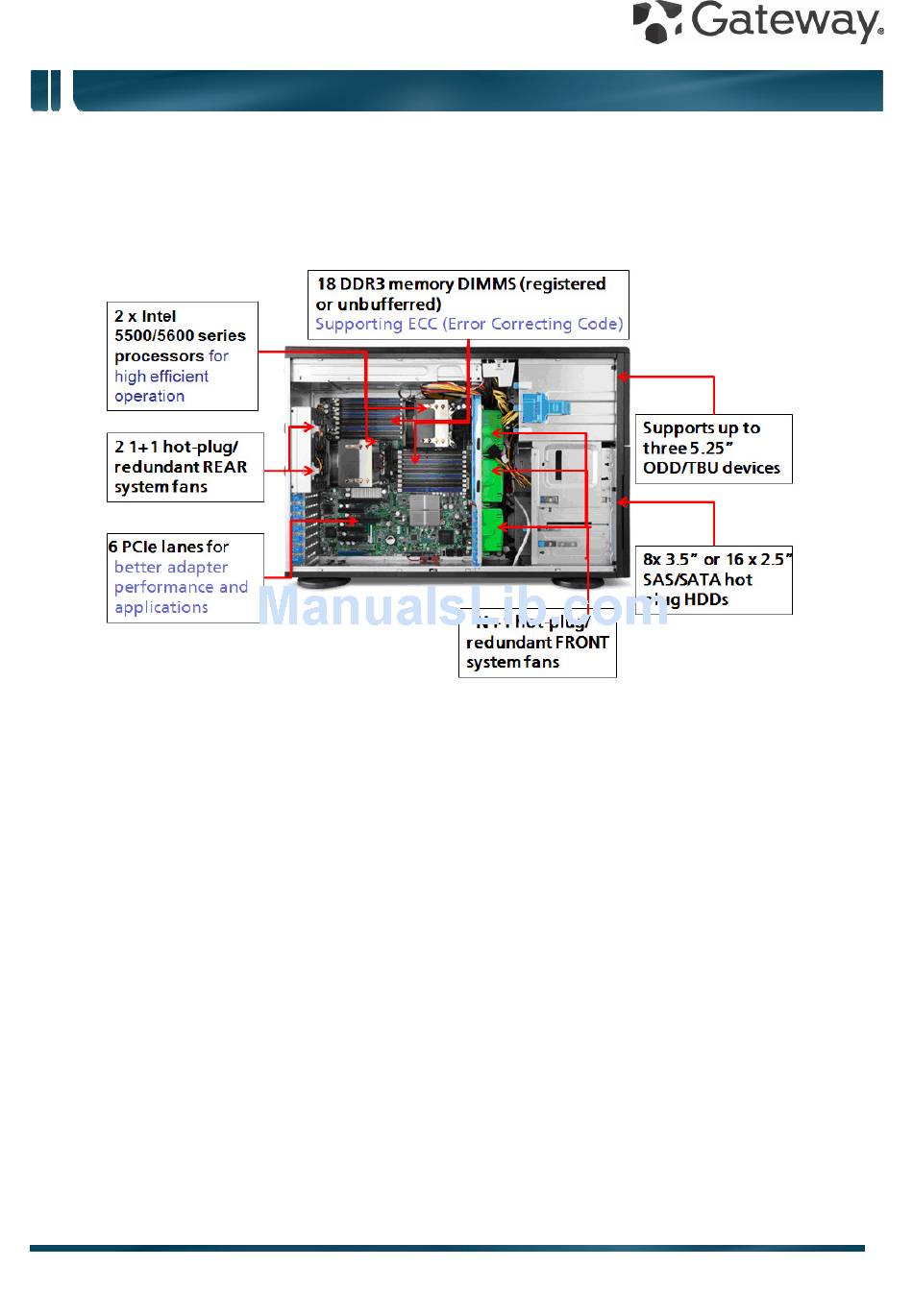

Internal view
1
2 x 720 W 80 PLUS
2
2 x Intel® Xeon® X5600 series processors
3
18 x DDR3 ECC registered / unbuffered DIMMs
4
N+1 redundant cooling fans (internal), and 1+1 redundant cooling fans (rear)
5
6 x PCIe expansion slots
6
3 x 5.25" media expansion bay
8
16 x 2.5" hot-swappable hard drive bays or
8 x 3.5" hot-swappable hard drive bays
Note: Availability may vary by region
®
gold-level efficient easy-swap power supplies (1+1 redundant, hot-pluggable)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GT350 F1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gateway GT350 F1

  • Page 1 GT350 F1 specifications Product overview The Gateway GT350 F1 is a dual-socket tower or 4U rack mountable server for flexible environment delivering blazing performance and exceptional expansion capability. Offering high reliability, latest technology, cost-effective growth, and comprehensive management features, Gateway GT350 F1 delivers high-availability, power efficient solution in departmental and medium enterprise environment deployments.
  • Page 2 GT350 F1 specifications Front View 4U Rackmount View Rear View Front I/O 2 x USB ports ID LED button Network, hard drive and power status indicators Rear I/O PS2 mouse and keyboard ports 4 x USB ports...
  • Page 3 GT350 F1 specifications 2 x Gigabit LAN port (RJ-45) Video port Serial port System ID LED Management port (RJ-45) What's New • New Intel® Xeon® 5600 Series processors Intel Xeon X5675, X5672, E5649, E5645, E5607, E5606, E5603 ® • Hot-pluggable/redundant power supply with 80 PLUS gold-level efficiency •...
  • Page 4 GT350 F1 specifications Management • Gateway Smart Server Manager • System ID LED buttons, System Health LED • Gateway Smart Console for server management and KVM over IP remote management Deployment/Serviceability • Gateway Smart Setup • BIOS Update Tool • IPMI Firmware Update Tool Operating Systems ®...
  • Page 5 GT350 F1 specifications • UL/cUL • CB Nemko/GS Environmental Specifications Dimensions 434 (H) x 648 (D) x 178 (W) mm (17.2 x 25.5 x 7 inches) Weight Maximum 39 kg (88.1 lbs) Minimum (includes a single HDD, CPU and 28.5 kg (62.8 lbs)
  • Page 6 GT350 F1 specifications Technical specifications ® PCIe specifications The primary I/O bus for the main board is PCIe Gen2. The following table lists the characteristics of the PCI-E bus segments. Details about each bus segment follow the table. NOTE: The signaling bit rate of PCI Express is 2.5Gbit/s one direction per lane for Gen 1 and 5.0Gbit/s one direction per lane for Gen 2.
  • Page 7 Registered DDR3 1066 / 1333 MHz • Unbuffered DDR3 1066 / 1333 MHz • NOTE: Gateway does not qualify mixed memory configurations of memory type, capacity or make. Population Gateway’s validated memory populations are listed below. NOTE: Support for 8 / 16 GB DIMMs may vary by regional availability.
  • Page 8 GT350 F1 specifications Dual processor configuration guide NOTE: Quad Rank DIMMs and Unbuffered DIMMs can only use a maximum of 6 slots per CPU (12 slots total) DIMM CPU 1 CPU 2 3 DIMM per channel configuration is only available for single/dual rank RDIMM. UDIMM and Quad rank RDIMM can only support 2 DIMM per channel.
  • Page 9 GT350 F1 specifications Lockstep mode needs the channel 1 & channel 2 with identical DIMM. DIMM slot populations within a • channel do not have to be identical but the same DIMM slot location across channel 1 and channel 2 must be the same.
  • Page 10 GT350 F1 specifications 4. Speed PC3 – 6400 => DDR3- 800 PC3 – 8500 => DDR3- 1066 PC3 – 10600 => DDR3- 1333...
  • Page 11 GT350 F1 specifications Power specifications 720W Power Supply Operational Input 100 to 240 Voltage Range (Vrms) Frequency 60/50 Range (Nominal) (Hz) Nominal Input Voltage (Vrms) Max. Rated Output Wattage Nominal Input 8.46 6.97 3.80 3.87 3.74 3.29 Current (A rms) Max.
  • Page 12 DVD or a downloadable file to be put into a USB 2.0 device, and eases the deployment of Gateway servers for any certified OS. Through its unique interface, users may select to have all the correct...
  • Page 13 GT350 F1 specifications Available options Processors (up to 2) Intel® Xeon® processor (Six Core) X5675 (12 MB L3 cache, 3.06 GHz, DDR3-1333 MHz, 95W) X5670 (12 MB L3 cache, 2.93 GHz, DDR3-1333 MHz, 95 W) X5660 (12 MB L3 cache, 2.80 GHz, DDR3-1333 MHz, 95 W) X5650 (12 MB L3 cache, 2.66 GHz, DDR3-1333 MHz, 95 W)
  • Page 14 GT350 F1 specifications E5503 (4 MB L3 cache, 2 GHz, DDR3-800 MHz, 80 W) E5502 (4 MB L3 cache, 1.86 GHz, DDR3-800 MHz, 80 W) Memory Memory type Registered / Unbuffered DDR3 ECC memory Capacities 1 / 2 / 4 / 8 / 16 GB DIMMs...
  • Page 15 GT350 F1 specifications DVD-ROM SuperMulti (DVD ± RW) RAID cards Model Port number RAID support ® MegaRAID SAS 9240-4i 4 internal ports 0, 1, 5, 10 ® MegaRAID SAS 9260-8i* 8 internal ports 0, 1, 5, 6, 10, 50, 60 ®...
  • Page 16 GT350 F1 specifications ® Qlogic QLE2562 8 Gb/s Tape Backup Unit (TBU) Model Tape capacity Form factor LTO Ultrium-3, 3Gb/s SAS 400/800 GB External 1U rack LTO-4, 3Gb/s SAS 400/800 GB External 1U rack LTO Ultrium-3, 3Gb/s SAS 400/800 GB Internal 5.25”...
  • Page 17 GT350 F1 specifications Service and support Gateway Servers offer a comprehensive service suite to take care of daily IT needs. Users can select the 3- year standard warranty or choose extended warranties and services. In a continuing effort to improve the quality of our products, information in this document is subject to change without notice.
