Chapter 2: Jumpers and Connectors

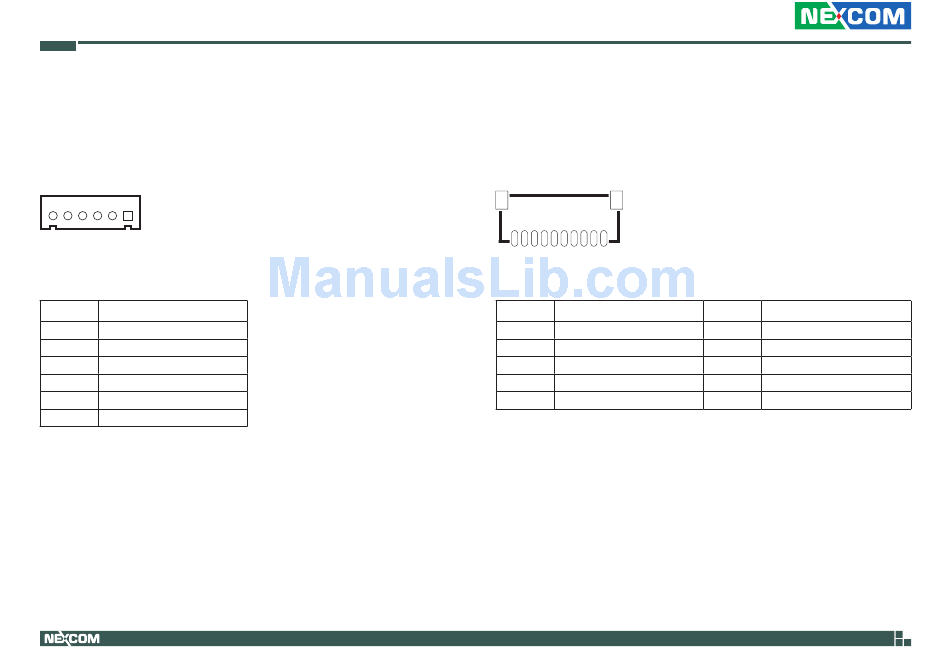

USB Connector

Connector type: 1x6 6-pin header JST, 2.5mm pitch
Connector location: J8
6 1
Pin Definition
1 +5V
2 HUBUSB DM1-
3 HUBUSB DP1+
4 HUBUSB DM2-
5 HUBUSB DP2+
6 GND
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.

Bluetooth Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J6
10 1
Pin Definition
1 GND
2 HUBUSB_DP3+
3 HUBUSB_DM3-
4 NC
5 NC
40
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
Pin Definition
6 NC
7 NC
8 3.3V
9 NC
10 GND
