Chapter 2: Jumpers and Connectors

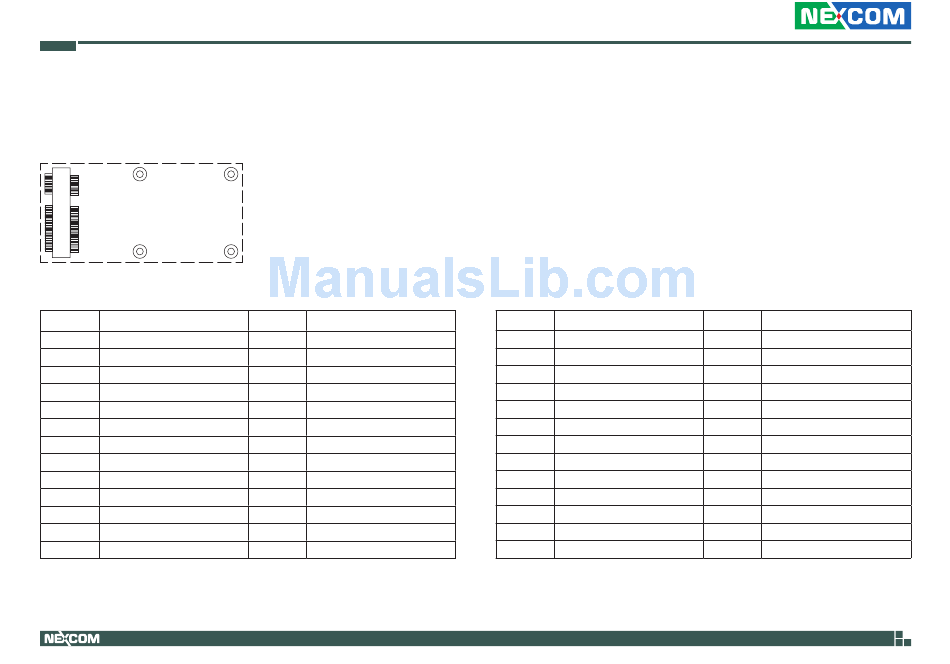

Mini-PCIe Slot

Connector location: CN6
1 2
51 52
Pin Definition
1 WAKE0#
3 NC
5 NC
7 PCIE_CLKREQ
9 GND
11 GPP_CLK1-
13 GPP_CLK1+
15 GND
17 NC
19 NC
21 GND
23 PCIE_RX2-
25 PCIE_RX2+
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 +3.3V_MINI
4 GND
6 +1.5V_MINI
8 SIM_PWR
10 SIM_DAT
12 SIM_CLK
14 SIM_RST
16 SIM_VCCP
18 GND
20 MINICARD1_DIS#
22 PCIE_RST#
24 +3.3V_MINI
26 GND
Pin Definition
27 GND
29 GND
31 PCIE_TX3-
33 PCIE_TX3+
35 GND
37 GND
39 +3.3V_MINI
41 +3.3V_MINI
43 GND
45 NC
47 NC
49 NC
51 NC
47
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
Pin Definition
28 +1.5V_MINI
30 SMB_CLK
32 SMB_DAT
34 GND
36 USB6-
38 USB6+
40 GND
42 NC
44 NC
46 NC
48 +1.5V_MINI
50 GND
52 +3.3V_MINI
