Chapter 2: Jumpers and Connectors

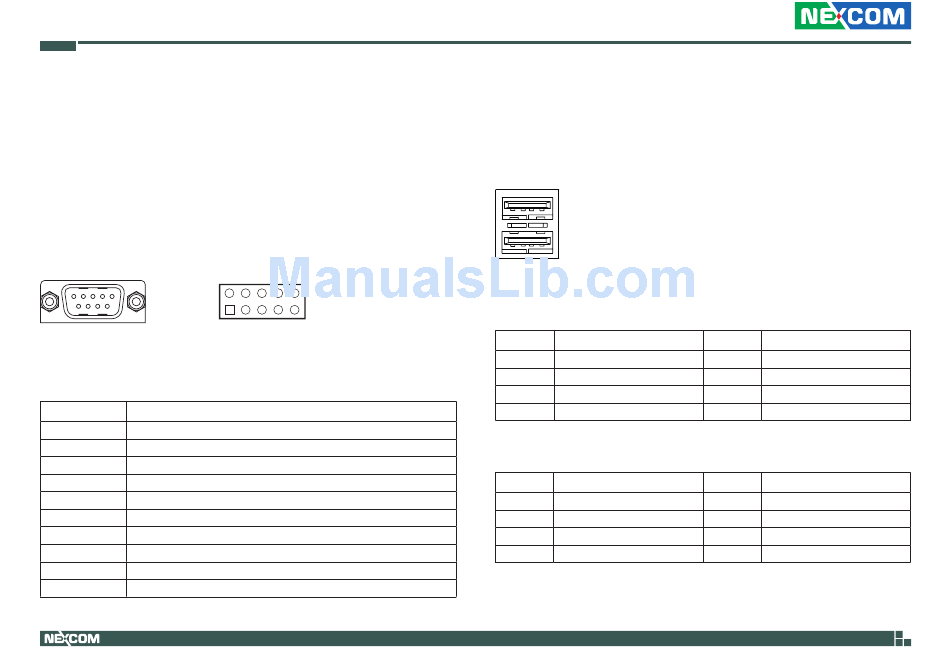

COM4 Port and Connector: Serial Port RS232

APPC 1231T/APPC 1531T/APPC 1731T/APPC 1931T Only
(Ring or +12V Power for Pin 9)
Connector type: 9-pin D-Sub
2x5 10-pin header, 2.0mm pitch
Connector location: CN10
2
1
RS232
Pin
1
2
3
4
5
6
7
8
9 COM4_RI (Could be a +12V Power Pin)
10
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
10
9
Definition
COM4_DCD
COM4_RXD
COM4_TXD
COM4_DTR
COM4_GND
COM4_DSR
COM4_RTS
COM4_CTS
GND

USB Ports

Connector type: Dual USB port
Connector location: USB1 and USB2
USB1
Pin Definition
1 VCC5
2 USB0-
3 USB0+
4 GND
USB2
Pin Definition
1 VCC5
2 USB2-
3 USB2+
4 GND
35
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
Pin Definition
5 VCC5
6 USB1-
7 USB1+
8 GND
Pin Definition
5 VCC5
6 USB3-
7 USB3+
8 GND
