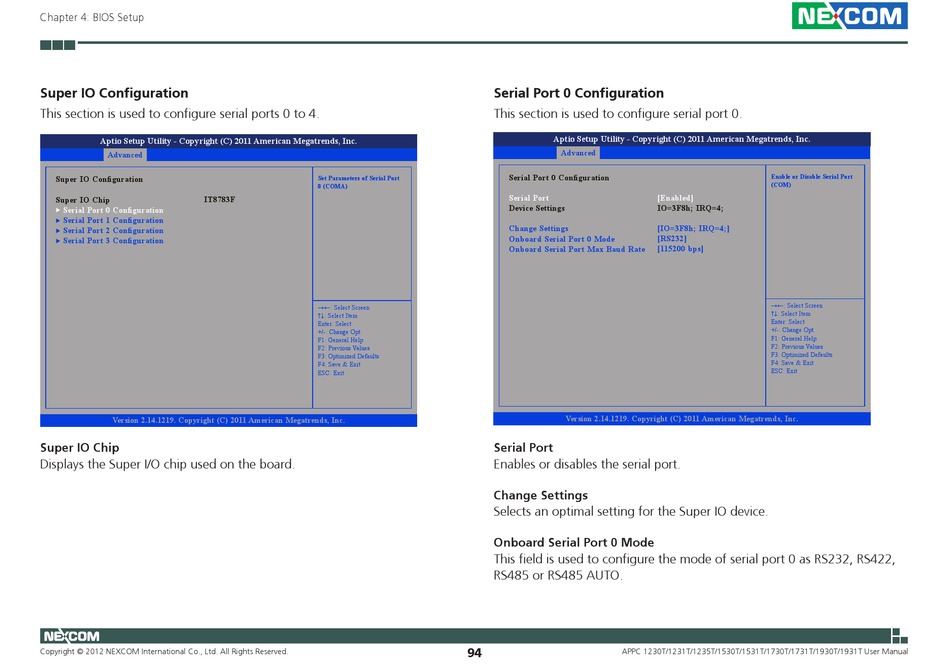

Super IO Configuration

This section is used to configure serial ports 0 to 4.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Super IO Configuration
IT8783F
Super IO Chip

Serial Port 0 Configuration


Serial Port 1 Configuration

Serial Port 2 Configuration

Serial Port 3 Configuration

Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Super IO Chip
Displays the Super I/O chip used on the board.
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
Serial Port 0 Configuration
This section is used to configure serial port 0.
Set Parameters of Serial Port
0 (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Onboard Serial Port 0 Mode
This field is used to configure the mode of serial port 0 as RS232, RS422,
RS485 or RS485 AUTO.
