Chapter 3: System Setup

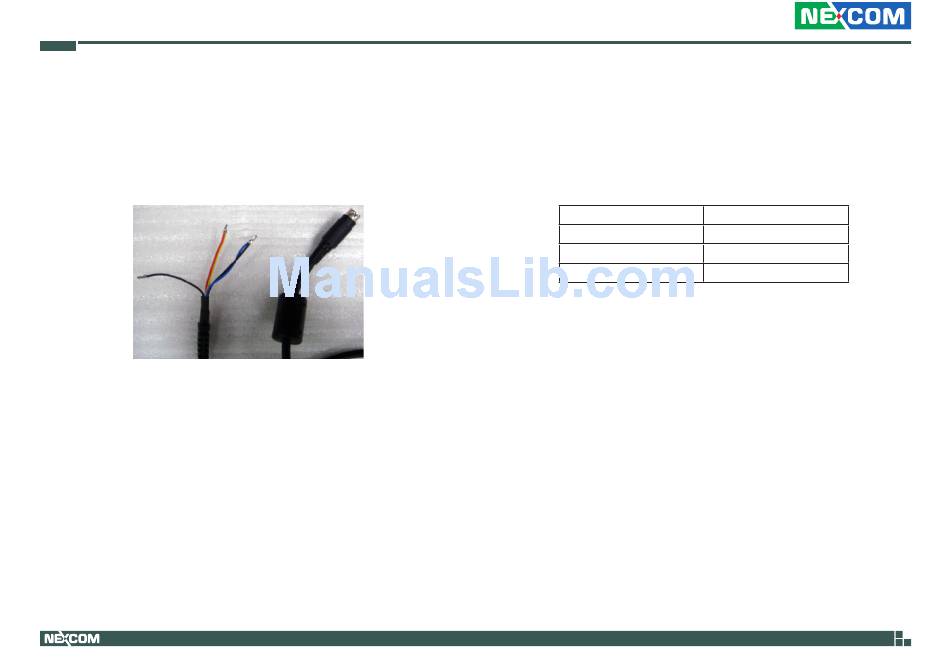

Plugging the DC Power Cable
1. Plug the DC 4-pin DIN power jack (male) into the DC 4-pin DIN power
jack (female) that is on the system.
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
2. The table below shows the pin definition of the cable.
Color
Black
Red&Yellow
Blue&Black
82
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
Pin Definition
GND
DC+
DC-
