Chapter 2: Jumpers and Connectors

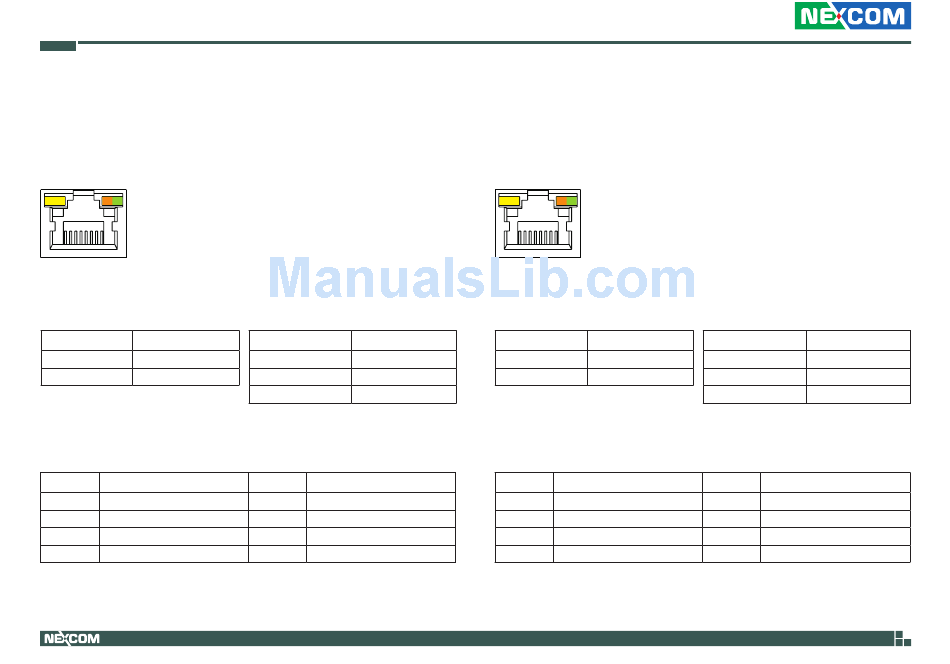

LAN2 Port

Connector type: RJ45 port with LEDs
Connector location: LAN2
ACT LINK
Act Status
Yellow blinking Data activity
Off No activity
Pin Definition
1 LAN2M0+
2 LAN2M0-
3 LAN2M1+
4 LAN2M2+
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
Link Status
Steady green 1000M link
Steady orange 100M link
Off 10M or no link
Pin Definition
5 LAN2M2-
6 LAN2M1-
7 LAN2M3+
8 LAN2M3-

LAN1 Port

Support Wake on LAN (WOL)
Connector type: RJ45 port with LEDs
Connector location: LAN1
ACT LINK
Act Status
Yellow blinking Data activity
Off No activity
Pin Definition
1 LAN1M0+
2 LAN1M0-
3 LAN1M1+
4 LAN1M2+
36
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
Link Status
Steady green 1000M link
Steady orange 100M link
Off 10M or no link
Pin Definition
5 LAN1M2-
6 LAN1M1-
7 LAN1M3+
8 LAN1M3-
