Chapter 2: Jumpers and Connectors

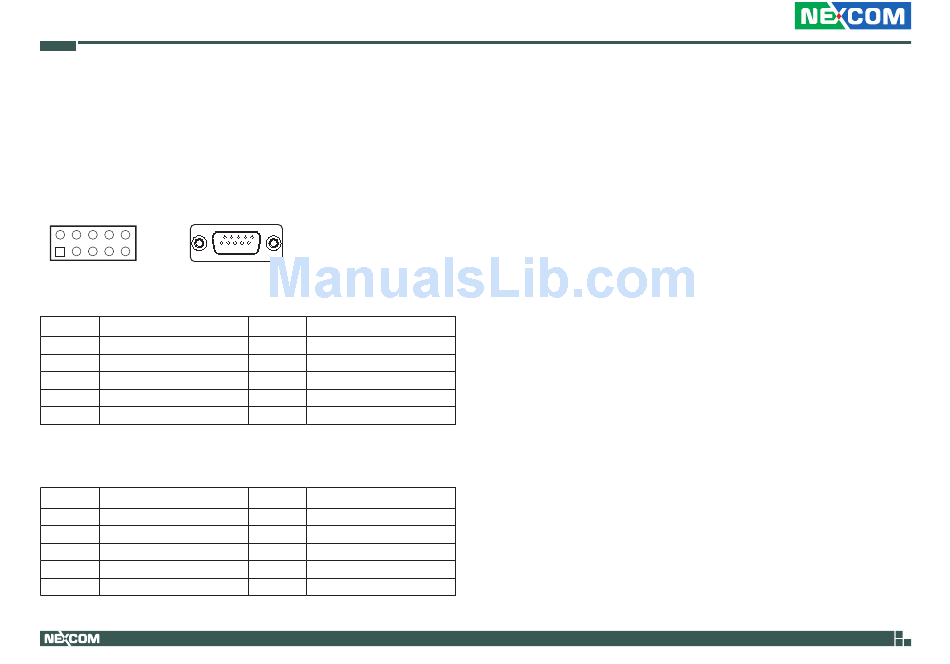

GPIO Connector

(APPC1931T/APPC1721T/APPC1531T/APPC1231T only)
Connector type: 2x5 10-pin header, 2.0mm pitch
DB15 male 10-pin
Connector location: JP2
2 10
1 9
6
Internal Connector
Pin Definition
1 +5V
3 GPIO22 (GPO)
5 GPIO23 (GPO)
7 NC
9 NC
External Connector
Pin Definition
1 +5V
3 GPIO21 (GPI)
5 NC
7 GPIO22 (GPO)
9 NC
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
1 5
10
Pin Definition
2 GND
4 GPIO20 (GPI)
6 GPIO21 (GPI)
8 NC
10 NC
Pin Definition
2 GPIO20 (GPI)
4 NC
6 GND
8 GPIO23 (GPO)
10 NC
43
