Chapter 3: System Setup
436.00
366.00
APPC 1930T/1931T
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.

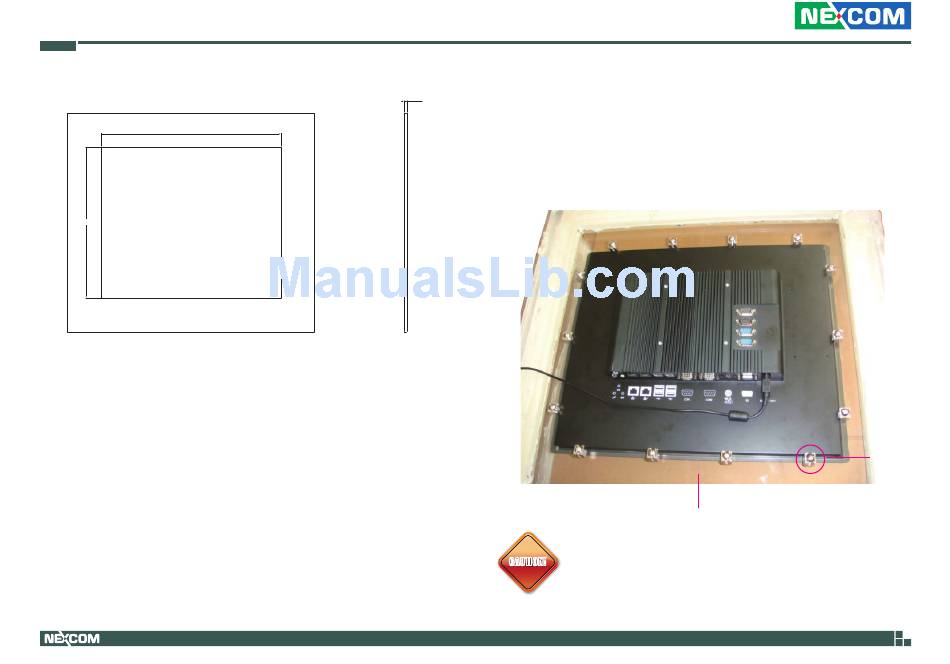

3. Slide the Panel PC through the hole until it is properly fitted against the
6mm
panel.
4. Position the mounting clamps along the rear edges of the Panel PC. The
first and second clamps must be positioned and secured diagonally prior
to mounting the rest of the clamps. Tighten the clamp's screw until it
touches the panel.
Do not overtighten the screws to prevent damaging the
CAUTION! CAUTION!
CAUTION!
Panel PC.
84
Panel
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
Clamp
