Chapter 3: System Setup

Panel Mounting

1. Select a place on the panel where you will mount the Panel PC.

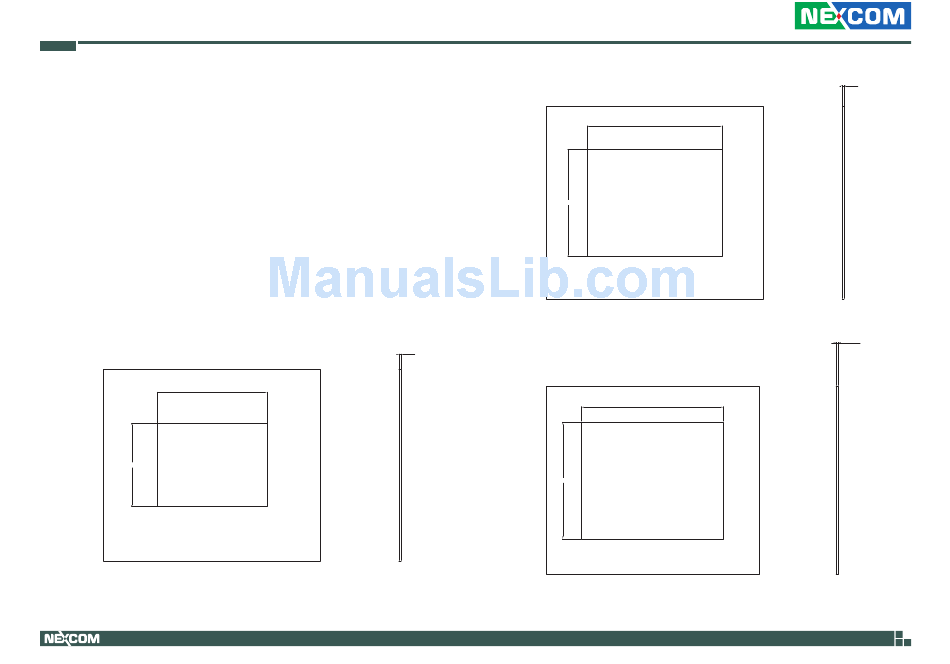

2. Cut out a shape on the panel that corresponds to the Panel PC's rear
dimensions.
The thickness of the panel (e.g. steel board, plank, acrylic board, wall,
etc.) where you will mount the Panel PC must not exceed 7mm
for APPC 1230T/1231T/1235T/1730T/1731T, and 6mm for
APPC 1530T/1531T/1930T/1931T. If the distance between the front bezel
and panel mount hole is too wide, it will not fit the panel mount kit.
304.50
230.00
APPC 1230T/1231T/1235T
