Usb Connector (Dongle); Internal Usb Connector - Nexcom eLITE610 User Manual

Chapter 2: Jumpers and Connectors

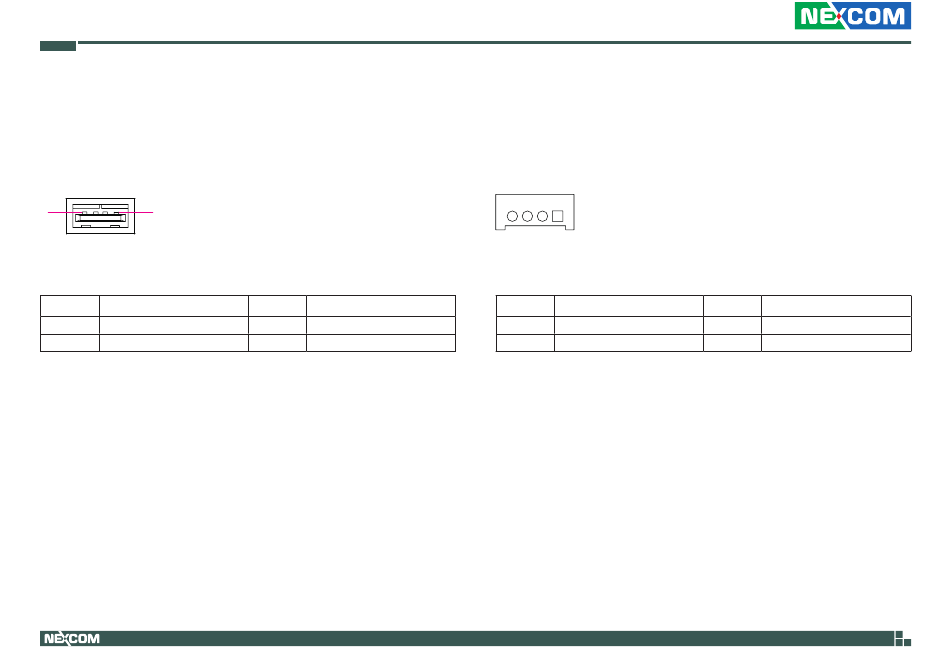

USB Connector (Dongle)

Connector type: USB port
Connector location: USB3
1 4
Pin Definition
1 +5V
3 USB3-
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB3-
4 GND

Internal USB Connector

Connector type: 1x4 4-pin header JST, 2.0mm pitch
Connector location: USB4
4 1
Pin Definition
1 +5V
3 USB4+
19
Pin Definition
2 USB4-
4 GND
eLITE610 User Manual
