Chapter 2: Jumpers and Connectors

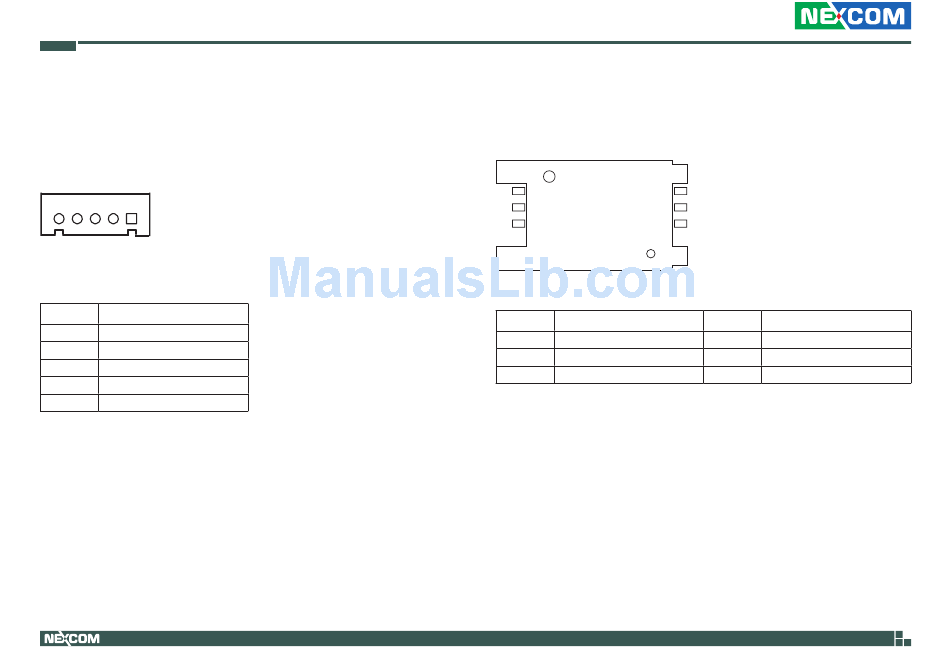

Dimming Control Button Connector

Connector type: 1x5 5-pin header JST, 2.0mm pitch
Connector location: J4
5 1
Pin Definition
1 GND
2 Decreased input
3 Increased input
4 Light sensor input
5 VCC3
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.

SIM Card Slot

Connector location: CN8
C3
C2
C1
Pin Definition
C1 UIM_PWR
C2 UIM_RST
C3 UIM_CLK
46
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
C7
C6
C5
Pin Definition
C5 GND
C6 UIM_VCCP
C7 UIM_DAT
