Chapter 2: Jumpers and Connectors

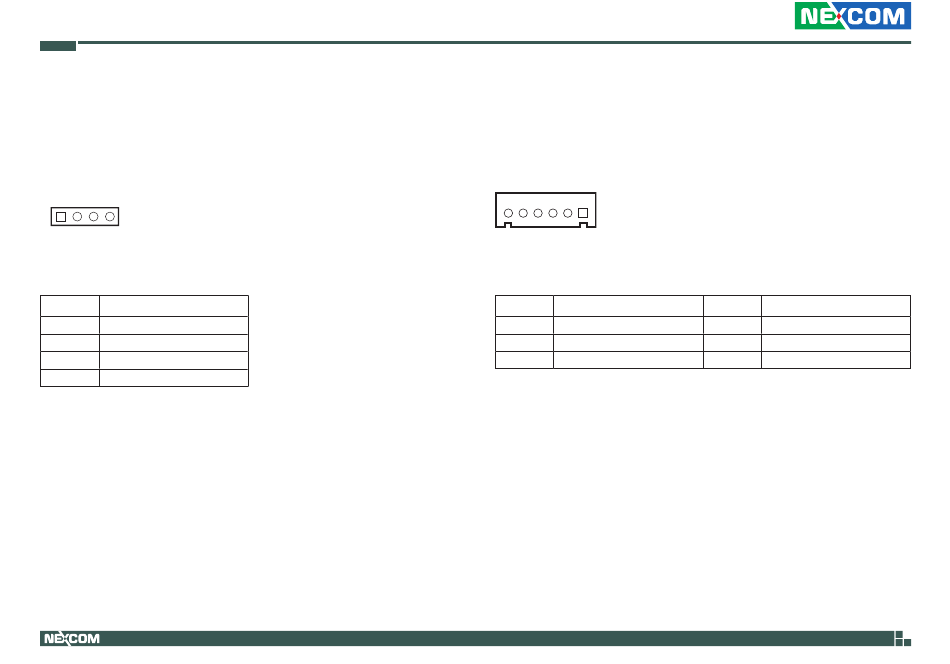

Speaker-out Connector

Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: J6
1 4
Pin Definition
1 OUT-L+
2 OUT-L-
3 OUT-R+
4 OUT-R-
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.

USB Connector

Connector type: 1x6 6-pin header JST, 2.5mm pitch
Connector location: J7
6 1
Pin Definition
1 +5V
3 HUBUSB DP1
5 HUBUSB DP2
24
Pin Definition
2 HUBUSB DM1
4 HUBUSB DM2
6 GND
