Chapter 3: System Setup

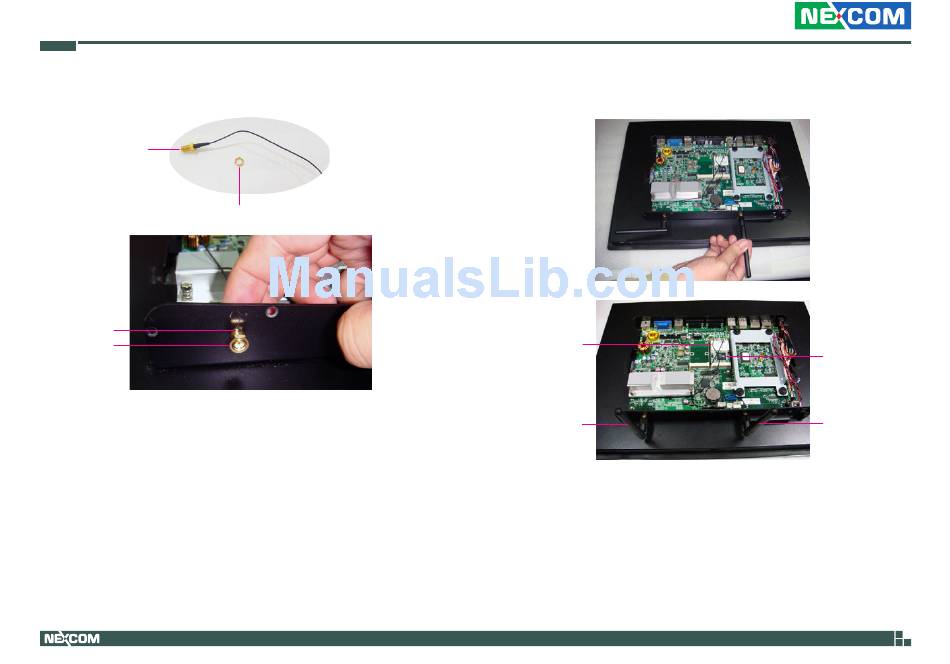

7. Insert the ring onto the antenna jack end of the cable.
Antenna jack
Antenna jack
Ring
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
Ring
8. Connect external antennas to the antenna jacks.
RF cable
Antenna
71
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
Mini PCIe
module
Antenna
