Chapter 3: System Setup
Installing a Bluetooth Module

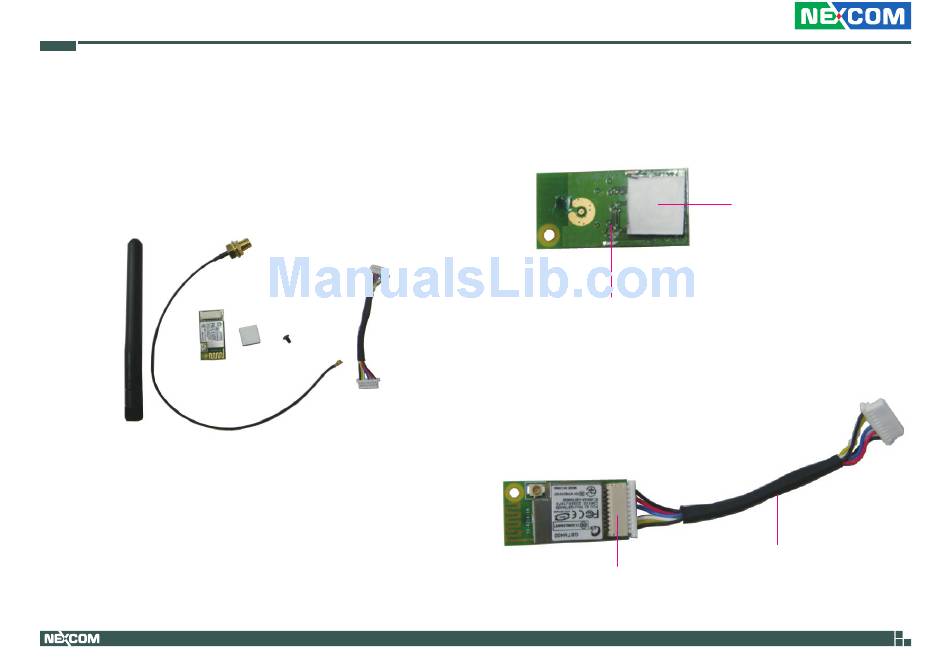

The Bluetooth module package includes the following items:
Bluetooth module QCOMQBTM400-01(V7)
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
1. Remove the sticker on one side of the square rubber pad, then place
that side on the back of the Bluetooth module.
Module's backside
2. Connect the cable to the connector on the Bluetooth module.
Connector
72
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
Square rubber pad
Cable
