Chapter 2: Jumpers and Connectors

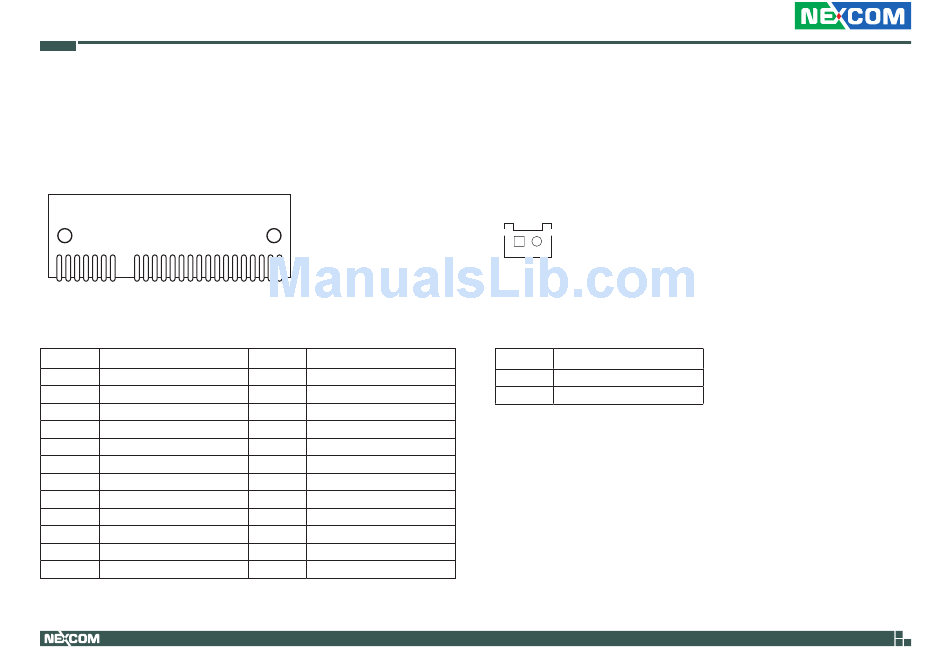

CFast Card Slot

Connector type: Standard CFast connector
Connector location: J13
S1 S7 PC1
Pin Definition
S1 GND
S2 SATA_TX1+
S3 SATA_TX1-
S4 GND
S5 SATA_RX1-
S6 SATA_RX1+
S7 GND
PC1 CFAST_CDI
PC2 GND
PC3 NC
PC4 NC
PC5 NC
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
PC17
Pin Definition
PC6 NC
PC7 GND
PC8 CFAST_LED1_C
PC9 CFAST_LED2_C
PC10 NC
PC11 NC
PC12 NC
PC13 VCC3
PC14 VCC3
PC15 GND
PC16 GND
PC17 CFAST_CDO

Power Button Connector

Connector type: 1x2 2-pin header, JST 2.0 mm pitch
Connector location: J11
1
2
Pin Definition
1 PWRBT
2 GND
49
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
