Chapter 3: System Setup

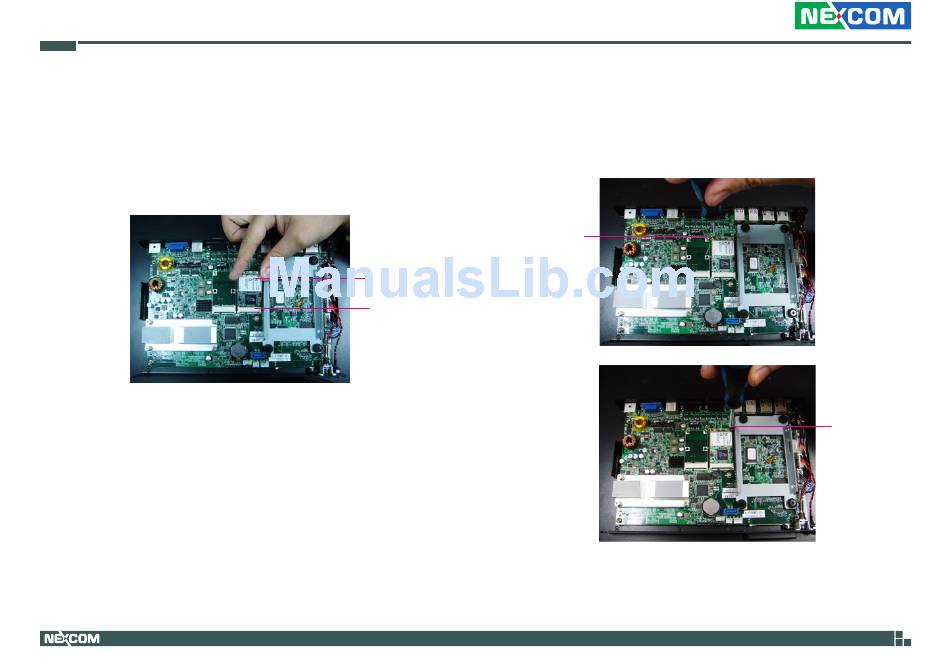

Installing the Full-Size Mini PCIe Module
1. Insert the Mini PCIe module into the Mini PCIe slot at a 45 degrees
angle until the gold-plated connector on the edge of the module
completely disappears inside the slot.
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
2. Secure the module with mounting screws.
Mounting
screw
Mini PCIe
module
Mini PCIe slot
68
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
Mounting
screw
