Chapter 2: Jumpers and Connectors

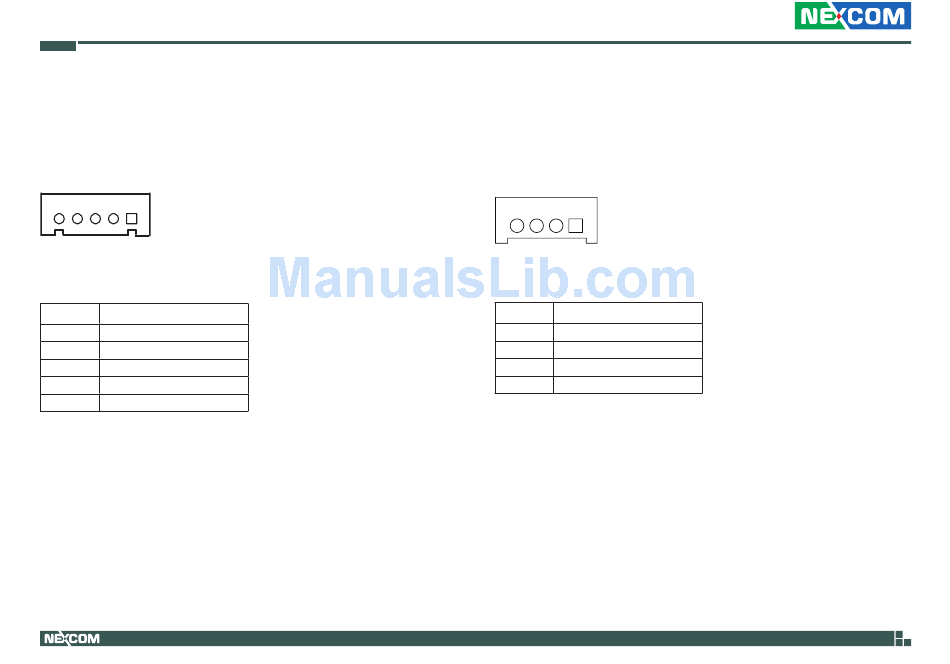

Power/HDD LED Indicator Connector

Connector type: 1x5 5-pin header JST, 2.0mm pitch
Connector location: J10
5 1
Pin Definition
1 HDD_GND
2 HDD_PWR
3 PWR_GND
4 5VSB
5 VCC5
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.

Backlight Control Input Connector

Connector type: 1x4 4-pin header JST, 2.0mm pitch
Connector location: J5
4 1
Pin Definition
1 GND
2 Tact Switch input
3 PIR IN
4 VCC3
45
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
