Chapter 3: System Setup

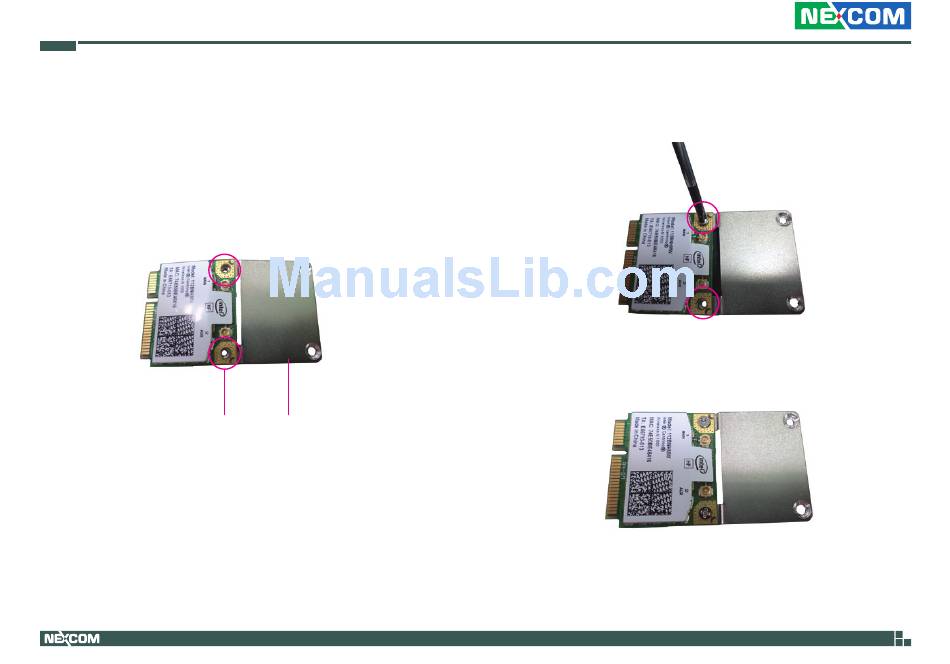

If you are installing the 802.11b/g QN-MU-A0028 wireless mini card
2. Tighten screws onto the mounting holes to secure the bracket.
module (half-size), before proceeding with the installation, please assemble
the Wi-Fi module bracket first by following the instructions below:
1. Align the mounting holes on the Wi-Fi mini card module to the
mounting holes on the Wi-Fi module bracket.
Mounting holes
Wi-Fi module bracket
66
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
APPC 1230T/1231T/1235T/1530T/1531T/1730T/1731T/1930T/1931T User Manual
