Engine External Views

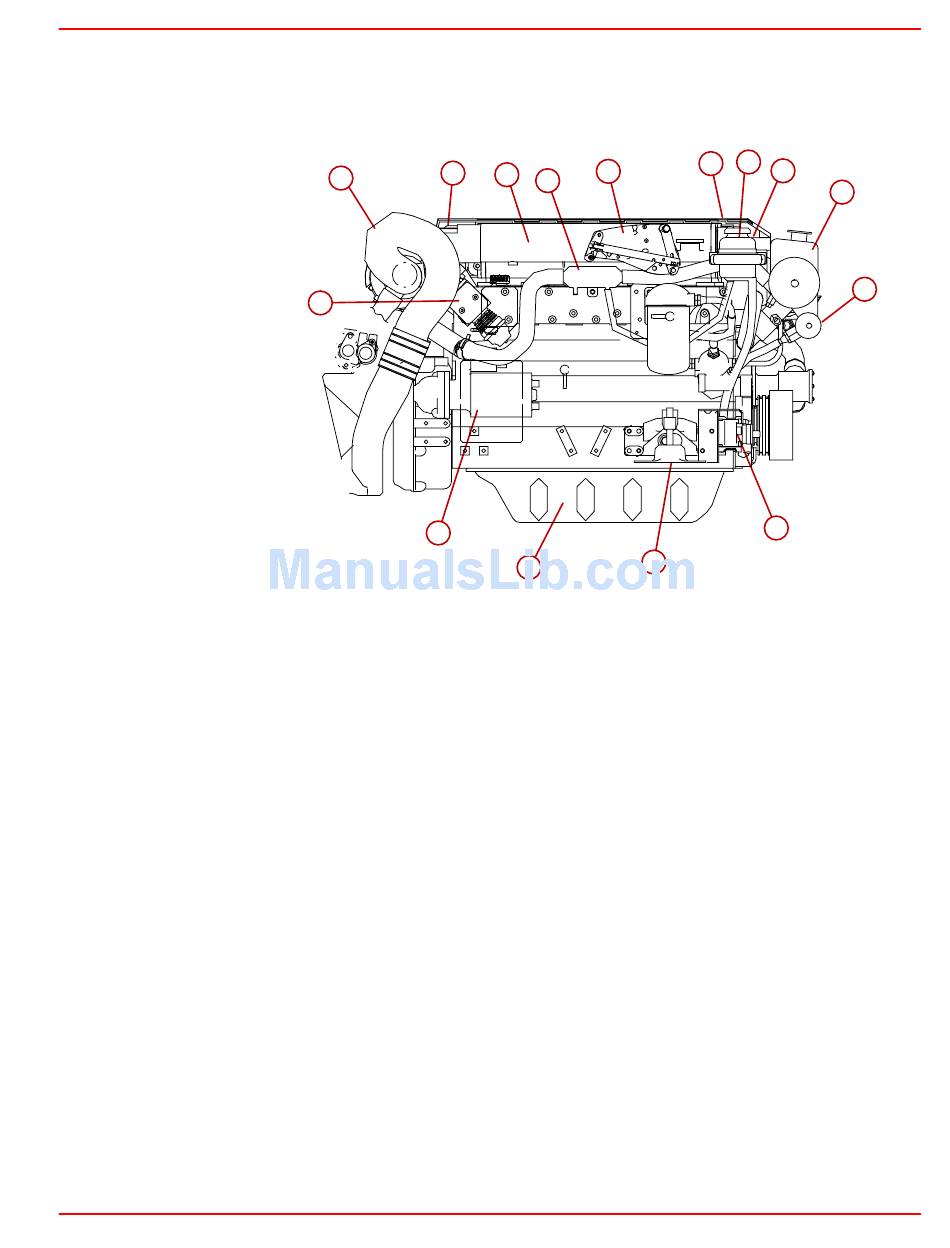

Starboard Side View

Typical In-Line D-Tronic Diesel
90-860074--1 FEBRUARY 2002
1
15
1 - Exhaust Riser, or Elbow If Equipped
2 - Intercooler Air Duct
3 - Fluid Cooler
4 - Shift Plate
5 - Intercooler
6 - Sacrificial Anode
7 - Power Steering Fluid Reservoir
8 - Thermostat Housing
9 - Heat Exchanger
10 - Engine Oil Cooler
11 - Power Steering Pump
12 - Front Engine Mount
13 - Oil Pan
14 - Starter Motor
15 - Wastegate
5
2
3
4
14
13
MAINTENANCE
7
6
8
11
12
9
10
78409
Page 1B-13
