Composite

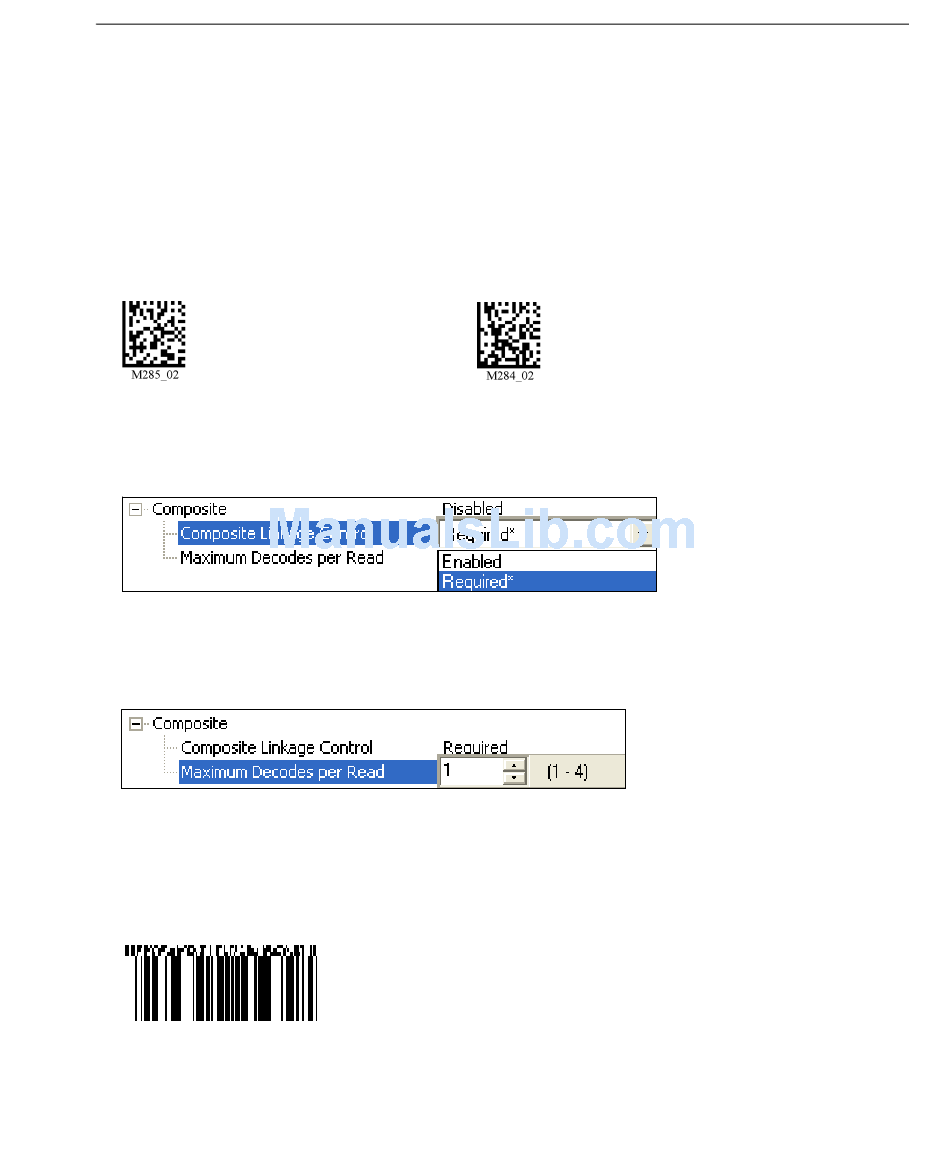

To read Composite symbols:
1. Enable the corresponding linear component.
2. Read the Composite On symbol below.
Important: Both the linear symbology and Composite must be enabled before the imager
can fully decode a Composite symbol.
Composite On
Composite by ESP
Composite Linkage Control
When Composite Linkage Control is set to Required, symbol data will only be output if both the 2D and 1D
components of the symbol are decoded. When not required, symbol data will be output even when only one of
the components is decoded.
Maximum Decodes per Read
Maximum Decodes per Read represents the maximum number of candidate symbols in the field of view that
can be decoded during a read cycle. Note that decode speed will decrease as the Maximum Decodes per
Read value is increased.
Sample Composite Symbol
Note: Composite is available only in Standard Mode.
MS-Q Imager User's Manual
Composite Off (Default)
Symbologies
5-11
