PS/2 Interface

Note: The PS/2 interface draws its power from the host computer.

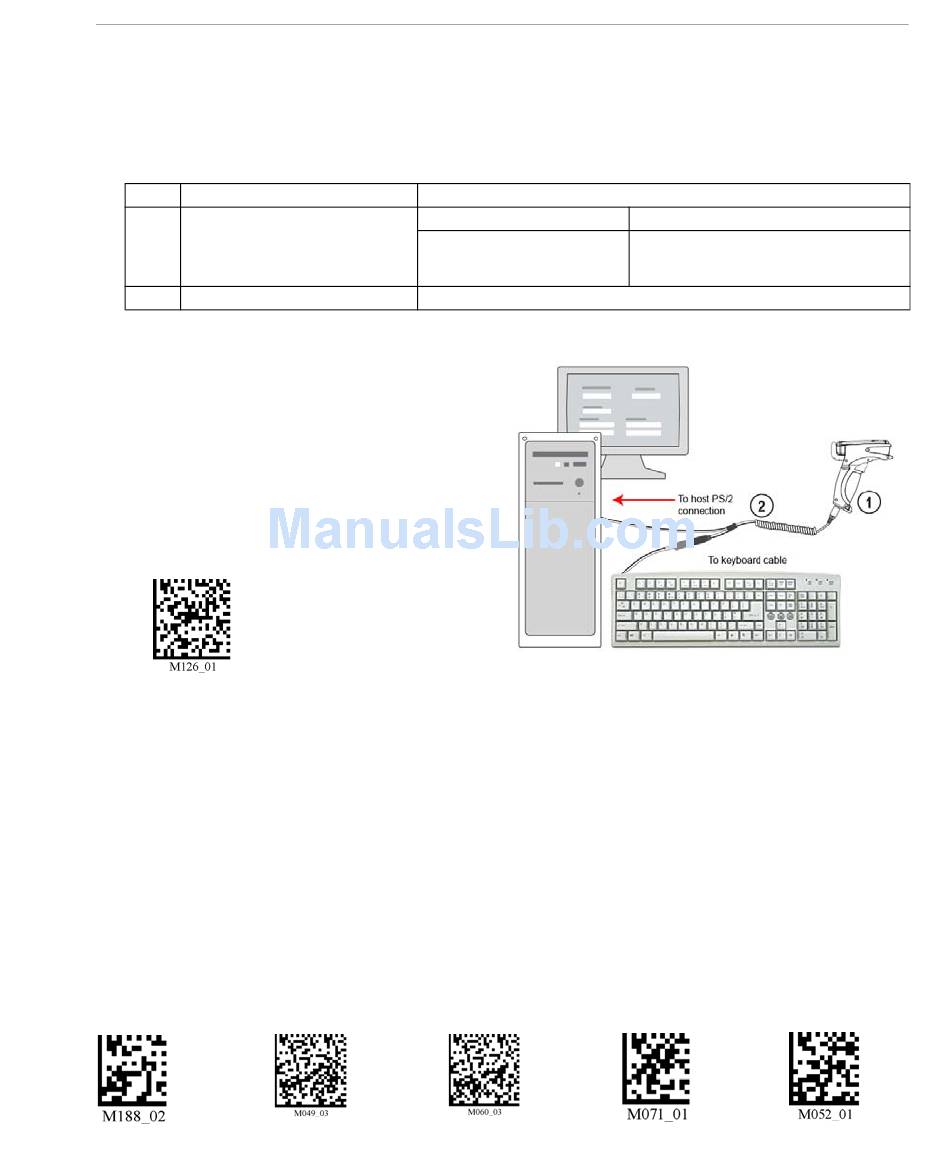

PS/2 Configuration
Item Description
1 MS-Q Imager
2 Keyboard Wedge Cable
Installation Steps for PS/2
1. Power-off the host and disconnect the
keyboard.
2. Attach the cable (2) to the MS-Q (1).
3. Attach the keyboard connector to the
keyboard cable and host computer as
shown.
4. Power-on the host.
5. Read the PS/2 Mode symbol below:
PS/2 Mode
This connection protocol provides power to the MS-Q, and, when attached, will allow
data input from both the MS-Q and the keyboard.
6. Read the Save Settings symbol at the bottom of this page.
You are now ready to send data to the host.
Important: The MS-Q must be connected to the keyboard for the imager and the
keyboard to function in PS/2 Mode.
Save
Settings
MS-Q Imager User's Manual
Rev 5 Hardware
Quadrus: FIS-6100-0040G,
-0041G
Basic: FIS-6150-0025G
60-000018-03
Default Default
to USB to PS/2
Part Number
Rev 6 Hardware
Quadrus: FIS-6100-0049G
Basic: FIS-6150-0030G
PS/2 Configuration
Clear
All Data
Quick Start
Clear
XML
Rules
1-7
