Select Model

Select Model

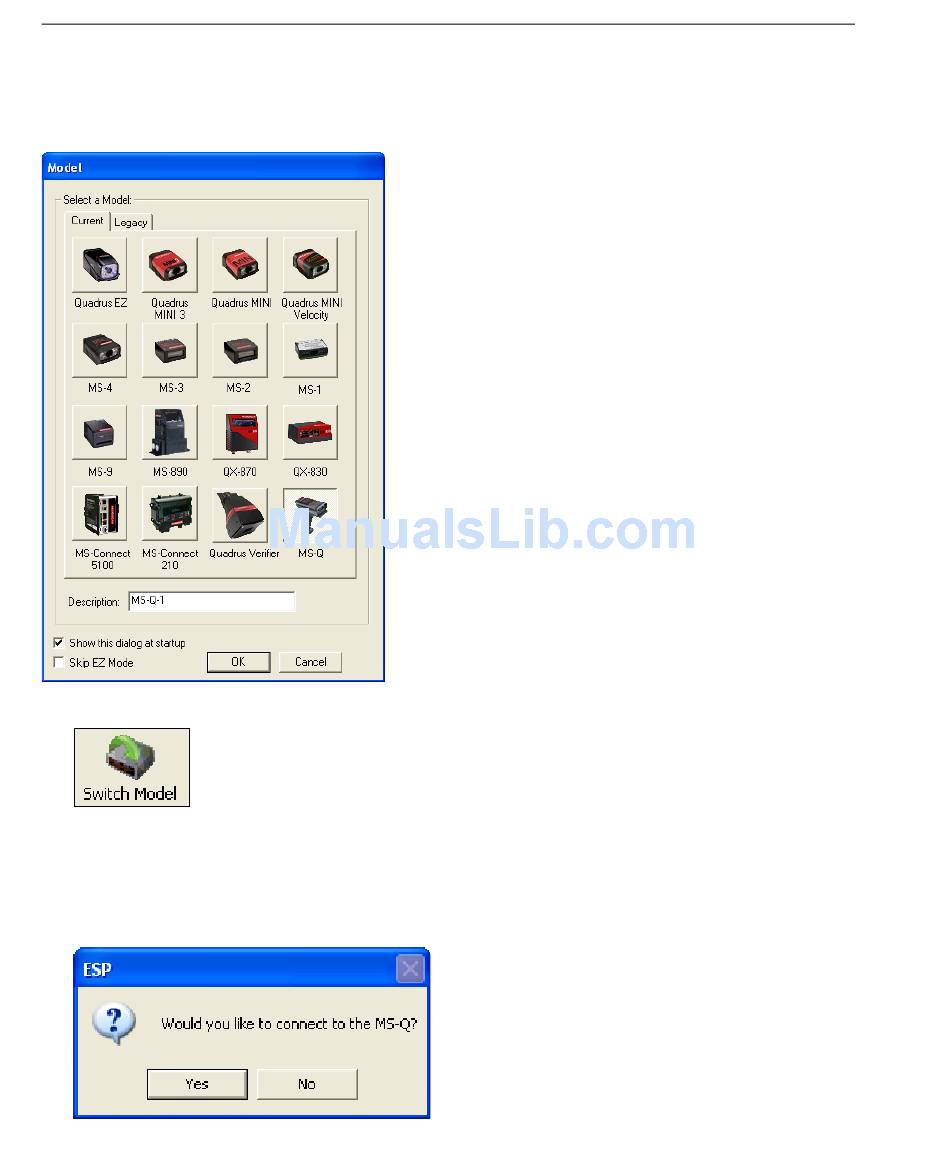

When you start ESP, the following menu will appear:
If you need to select another model later, click Switch Model at the top of the screen.
1. Click the MS-Q button and then click OK. If you do not want to make this selection
every time you start ESP, uncheck "Show this dialog at startup".
2. Select the default reader name (MS-Q-1), or type a name of your choice in the
Description text field and click OK.
3. Click Yes when this dialog appears:
1-12
MS-Q Imager User's Manual
