Performing a Hardware Default and Manual Battery Recharge
Appendix E — Performing a Hardware Default
Note: The following procedures are only applicable to MS-Q configurations using the
original (H1) handle and original lithium ion battery.
Occasionally it may become necessary to reset your imager to its factory default configuration.
If your imager is locked or is failing to read, perform the following steps:

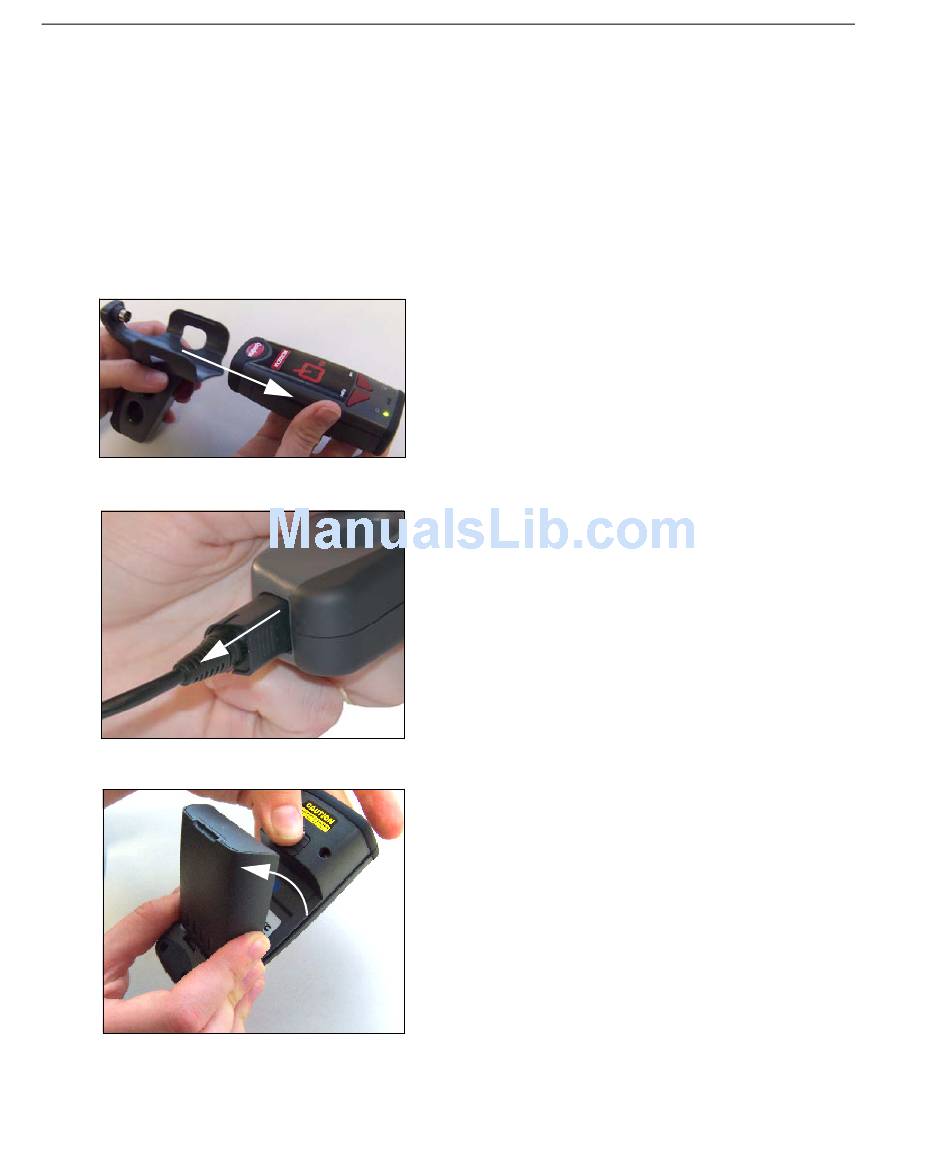

1. Remove the imager from the H1 handle.
2. Disengage the USB or RS-232 cable from the bottom of the H1 handle.
3. Remove the battery.
(Continued on next page)
A-58
and Manual Battery Recharge
Important: Do not pull directly on
the cable; grasp and pull on the
connector housing to release the
locking mechanism and disengage.
Note: If you are using a battery
blank, you do NOT need to
remove it when performing a
hardware default.
MS-Q Imager User's Manual
