Composite

To read Composite symbols:
1. Enable the corresponding linear component.
2. Read the Composite On symbol below.
3. Set Maximum Decodes per Read to 2.
Important: Both the applicable linear symbology portion of the Composite symbol as well
as Composite On must be enabled before the reader can fully decode a Composite symbol.
Composite On
Composite by ESP

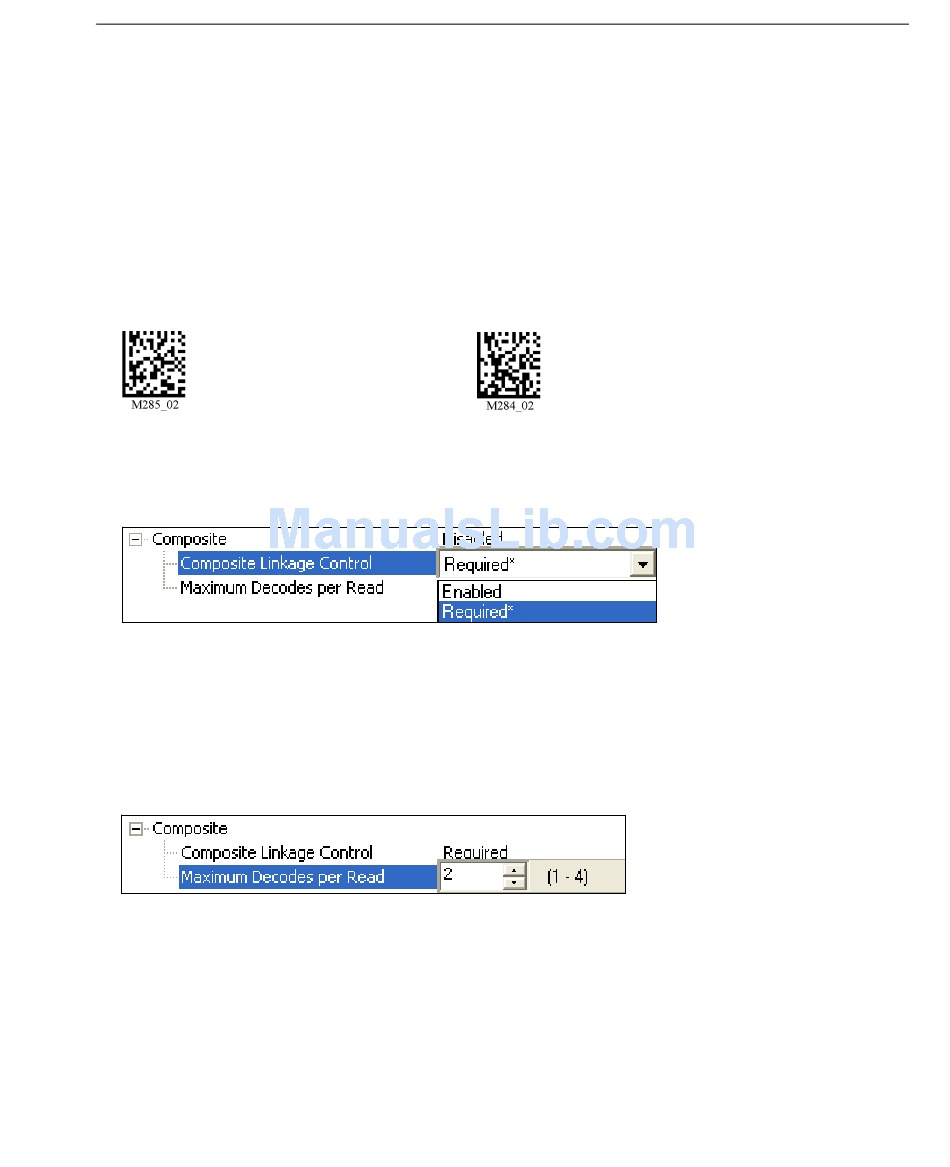

Composite Linkage Control
When Composite Linkage Control is set to Required, symbol data will only be output
if both the 2D and 1D components of the symbol are decoded. When not required, symbol
data will be output even when only one of the components is decoded.
Maximum Decodes per Read
Maximum Decodes per Read represents the maximum number of candidate symbols
in the field of view that can be decoded during a read cycle. Note that decode speed will
decrease as the Maximum Decodes per Read value is increased.
HS-2D Handheld Reader User's Manual
Composite Off (Default)
